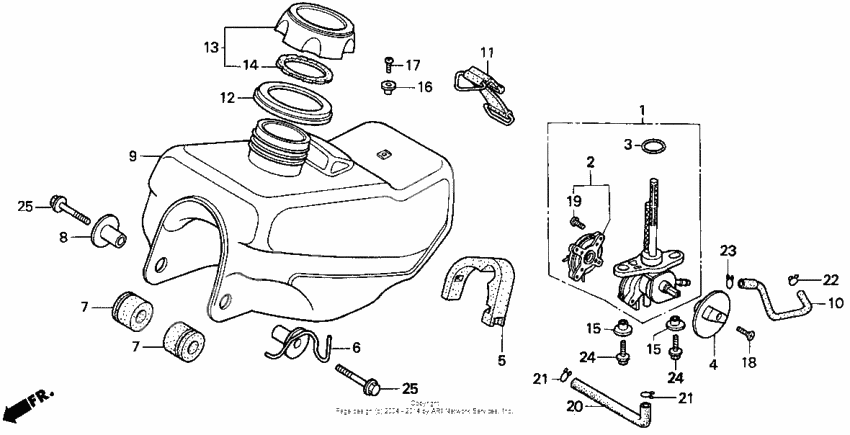

Fuel tank
Fuel tank
Petcock assy. (Ref #1)
1
Part #16950-GZ4-675
Cover set, petcock (Ref #2)
2
Part #16953-MBZ-B51
0-ring (Ref #3)
3
Part #16958-GZ4-670
LEVER,FUEL COCK (Ref #4)
4
Part #16963-GZ4-670
Rubber b,tank set (Ref #5)
5
Part #17504-GZ4-670
Collar,l.tank set (Ref #6)
6
Part #17507-GZ4-670
Rub, tank mounting (Ref #7)
7
Part #17508-GZ4-670
Rub, tank mounting (Ref #7)
7
Part #17508-GZ4-670
Rub, tank mounting (Ref #7)
7
Part #17508-GZ4-670
Rub, tank mounting (Ref #7)
7
Part #17508-GZ4-670
Collar, tank setting (Ref #8)
8
Part #17509-GZ4-670
Tank comp.,fuel (Ref #9)
9
Part #17510-GZ4-671
Tube a, fuel (Ref #10)
10
Part #17514-GZ4-670
Band,tank rear (Ref #11)
11
Part #17517-GZ4-670
Packing,fuel fill (Ref #12)
12
Part #17518-GZ4-670
Cap assy.,fuel ta (Ref #13)
13
Part #17620-GZ4-670
Packing,fuel cap (Ref #14)
14
Part #17624-GZ4-670
Collar, tank setting (Ref #15)
15
Part #17626-GZ4-670
Collar, tank setting (Ref #15)
15
Part #17626-GZ4-670
Collar, tank setting (Ref #15)
15
Part #17626-GZ4-670
Collar, tank setting (Ref #15)
15
Part #17626-GZ4-670
Collar, reflector setting (Ref #16)
16
Part #90129-463-770
Screw, pan, 6x14 (Ref #17)
17
Part #93500-060140A
Screw, oval (5x20) (Ref #18)
18
Part #93700-050200G
Screw,washer 4x12 (Ref #19)
19
Part #93892-040-160-8
Bulk hose (3.5x3000) (Ref #20)
20
Part #95001-350-0360M
CLIP (Ref #21)
21
Part #95002-02070
CLIP (Ref #21)
21
Part #95002-02070
CLIP (Ref #21)
21
Part #95002-02070
CLIP (Ref #21)
21
Part #95002-02070
CLIP (Ref #22)
22
Part #95002-02080
CLIP (Ref #23)
23
Part #95002-50000
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #24)
24
Part #95701-060-160-0
BOLT (Ref #25)
25
Part #95701-080-450-0
BOLT (Ref #25)
25
Part #95701-080-450-0
BOLT (Ref #25)
25
Part #95701-080-450-0
BOLT (Ref #25)
25
Part #95701-080-450-0
