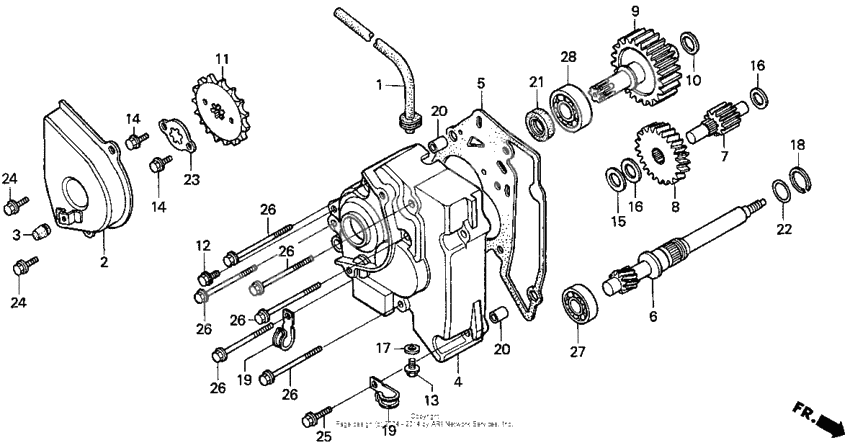

Трансмиссия
Трансмиссия
Tube, breather (Ref #1)
1
Part #11211-GZ4-670
Cvr, drive sprocket (Ref #2)
2
Part #11345-GZ4-671
Rubber, stopper (Ref #3)
3
Part #19055-GS2-000
Case,mission (Ref #4)
4
Part #21301-GZ4-670
Gasket,mission ca (Ref #5)
5
Part #21395-GZ4-790
Driveshaft (Ref #6)
6
Part #23411-GZ4-670
Countershaft (Ref #7)
7
Part #23421-GZ4-670
Gear,counter (Ref #8)
8
Part #23422-GZ4-670
Gear comp.,final (Ref #9)
9
Part #23430-GZ4-670
Collar,thrust,22m (Ref #10)
10
Part #23433-GZ4-670
Sprocket,drive (Ref #11)
11
Part #23801-121-000
BOLT (Ref #12)
12
Part #90024-612-000
Bolt, check, 8mm (Ref #13)
13
Part #90035-GF4-000
BOLT (Ref #14)
14
Part #90084-041-000
BOLT (Ref #14)
14
Part #90084-041-000
BOLT (Ref #14)
14
Part #90084-041-000
BOLT (Ref #14)
14
Part #90084-041-000
Washer side 14mm (Ref #15)
15
Part #90429-GN2-003
Шайба (Ref #16)
16
Part #90451-121-000
Шайба (Ref #16)
16
Part #90451-121-000
Шайба (Ref #16)
16
Part #90451-121-000
Шайба (Ref #16)
16
Part #90451-121-000
Washer, 8mm (Ref #17)
17
Part #90481-035-000
Circlip (22mm) (Ref #18)
18
Part #90601-437-000
Clamper,rr.brake (Ref #19)
19
Part #90657-GR0-000
Clamper,rr.brake (Ref #19)
19
Part #90657-GR0-000
Clamper,rr.brake (Ref #19)
19
Part #90657-GR0-000
Clamper,rr.brake (Ref #19)
19
Part #90657-GR0-000
Pin a, dowel, 8x12 (Ref #20)
20
Part #9430108120
Pin a, dowel, 8x12 (Ref #20)
20
Part #9430108120
Pin a, dowel, 8x12 (Ref #20)
20
Part #9430108120
Pin a, dowel, 8x12 (Ref #20)
20
Part #9430108120
Oil seal, 20x30x5 (Ref #21)
21
Part #91204-187-013
Прокладка (Ref #22)
22
Part #91301-147-023
Plate fixing (Ref #23)
23
Part #95014-92000
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-060-120-0
Bolt, flange, 6x35 (Ref #25)
25
Part #95701-0603500
B/brg rad n/com (Ref #27)
27
Part #96100-620-230-0
Bearing, radial ball, 6204 (Ref #28)
28
Part #96100-6204000
