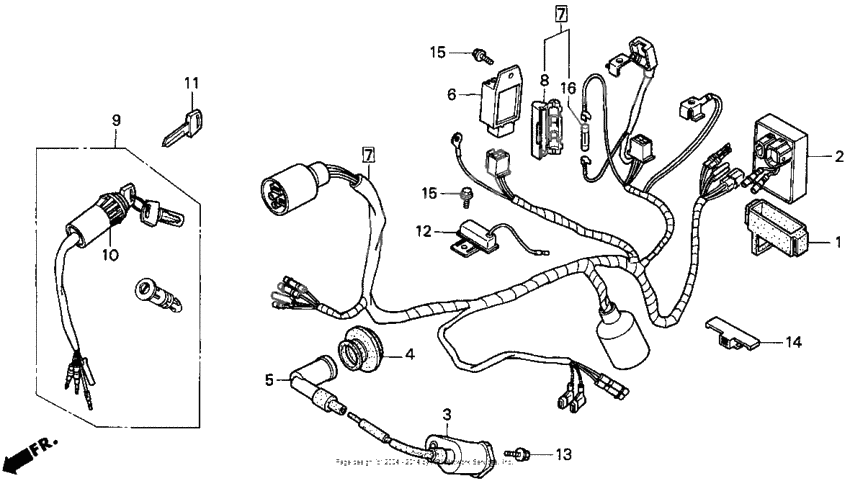

Wire harness
Wire harness
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-HA7-670
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-HA7-670
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-HA7-670
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-HA7-670
C.d.i.unit (Ref #2)
2
Part #30410-GZ4-671
Coil assy., ignition (Ref #3)
3
Part #30510-GF9-405
Seal,hightention (Ref #4)
4
Part #30605-GW0-000
Cap (assy),noise (Ref #5)
5
Part #30700-GR1-010
Rectifier, regulator (Ref #6)
6
Part #31600-GW0-004
Harness wire (Ref #7)
7
Part #32100-GZ4-670
Case, fuse (5a) (Ref #8)
8
Part #32125-463-770
Key set (Ref #9)
9
Part #35010-GZ4-670
Sw assy,comb (Ref #10)
10
Part #35100-GZ4-671
Key,blank (no.2) (Ref #11)
11
Part #35122-GZ0-003
Key,blank (no.1) (Ref #11)
11
Part #35121-GZ0-003
Resistor comp.(5w (Ref #12)
12
Part #35400-GZ4-670
Bolt, flange, 5x22 (Ref #13)
13
Part #90112-GK8-010
CLIP (Ref #14)
14
Part #91553-SF4-003
BOLT (Ref #15)
15
Part #95701-060-120-0
BOLT (Ref #15)
15
Part #95701-060-120-0
BOLT (Ref #15)
15
Part #95701-060-120-0
BOLT (Ref #15)
15
Part #95701-060-120-0
Коробка предохранителей (Ref #16)
16
Part #98200-20500
