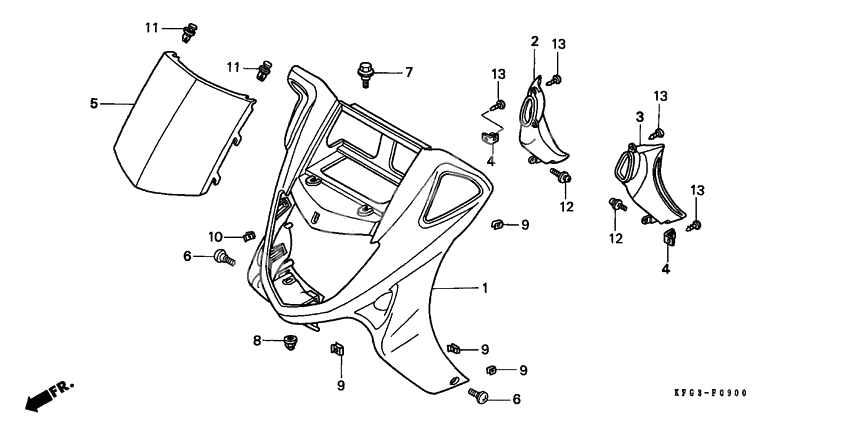

Front cover shutter
Front cover shutter
Cover,fr *nh410m* (Ref #1)
1
Part #64301-KFG-000ZL
Cover,fr *p25c* (Ref #1)
1
Part #64301-KFG-000ZE
Cover,fr *r101cu* (Ref #1)
1
Part #64301-KFG-000ZD
Cover,fr *nh237p* (Ref #1)
1
Part #64301-KFG-000ZC
R duct,front cove (Ref #2)
2
Part #64305-KFG-640
L.duct,front cove (Ref #3)
3
Part #64306-KFG-640
Stay,fr cover duc (Ref #4)
4
Part #64307-KFG-000
Stay,fr cover duc (Ref #4)
4
Part #64307-KFG-000
Stay,fr cover duc (Ref #4)
4
Part #64307-KFG-000
Stay,fr cover duc (Ref #4)
4
Part #64307-KFG-000
Lid,fr tr*nh237p* (Ref #5)
5
Part #64401-KFG-000ZB
Lid,fr co*nh410m* (Ref #5)
5
Part #64401-KFG-000ZM
Lid,fr cove*p25c* (Ref #5)
5
Part #64401-KFG-000ZF
Lid,fr tr*r101cu* (Ref #5)
5
Part #64401-KFG-000ZE
Винт (Ref #6)
6
Part #90103-KV3-830
Винт (Ref #6)
6
Part #90103-KV3-830
Винт (Ref #6)
6
Part #90103-KV3-830
Винт (Ref #6)
6
Part #90103-KV3-830
BOLT (Ref #7)
7
Part #90111-162-000
Гайка (Ref #8)
8
Part #90301-693-000
Гайка (Ref #10)
10
Part #90305-SH3-000
CLIP (Ref #11)
11
Part #90657-SB0-003
CLIP (Ref #11)
11
Part #90657-SB0-003
CLIP (Ref #11)
11
Part #90657-SB0-003
CLIP (Ref #11)
11
Part #90657-SB0-003
Screw-washer, 5x14 (Ref #12)
12
Part #93891-0501400
Screw-washer, 5x14 (Ref #12)
12
Part #93891-0501400
Screw-washer, 5x14 (Ref #12)
12
Part #93891-0501400
Screw-washer, 5x14 (Ref #12)
12
Part #93891-0501400
