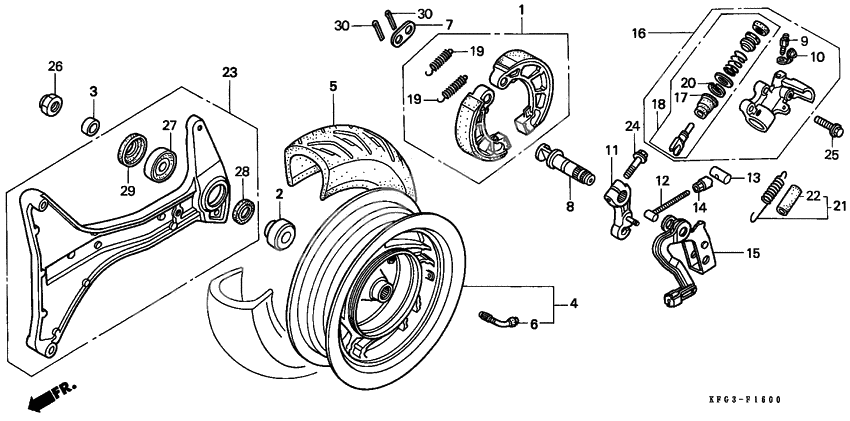

Rear wheel/ thrust cylinder
Rear wheel/ thrust cylinder
Shoe set, brake (Ref #1)
1
Part #06430-KFG-000
Collar a,rr.axle (Ref #2)
2
Part #42311-KAB-000
Collar b, rr. axle (Ref #3)
3
Part #42312-KM1-000
Wheel sub assy,rr (Ref #4)
4
Part #42650-KFG-010
Tire,rr(dun) (Ref #5)
5
Part #42711-KFG-903
Tire, rr. (Ref #5)
5
Part #42711-KFG-904
Клапан, обод колеса (Ref #6)
6
Part #42753-KJ9-003
Washer, anchor pin (Ref #7)
7
Part #43102-319-000
Cam, rr. brake (Ref #8)
8
Part #43141-KFG-000
Болт (Ref #9)
9
Part #43352-568-003
CAP (Ref #10)
10
Part #43353-461-771
Arm, rr. brake (Ref #11)
11
Part #43410-KFG-000
Rod, rr. brake push (Ref #12)
12
Part #43415-KFG-000
Joint b, brake arm (Ref #13)
13
Part #43418-KFG-000
Nut, adjuster (Ref #14)
14
Part #43419-KFG-000
Sub-arm (Ref #15)
15
Part #43420-KFG-000
Thrust cylinderas (Ref #16)
16
Part #43550-KFG-006
Ботинок (Ref #17)
17
Part #43559-KFG-006
PISTON SET (Ref #18)
18
Part #43560-KFG-016
Spring, fr. brake shoe (Ref #19)
19
Part #45133-329-000
Spring, fr. brake shoe (Ref #19)
19
Part #45133-329-000
Spring, fr. brake shoe (Ref #19)
19
Part #45133-329-000
Spring, fr. brake shoe (Ref #19)
19
Part #45133-329-000
Circlip (Ref #20)
20
Part #46182-500-013
Spring, rr. (Ref #21)
21
Part #46513-KFG-000
TUBE (Ref #22)
22
Part #46515-KY7-000
Swingarm assy (Ref #23)
23
Part #52000-KFG-000
Болт (Ref #24)
24
Part #90102-KV3-700
Болт (Ref #25)
25
Part #90107-MT3-003
Nut, u (16mm) (Ref #26)
26
Part #90305-KBN-901
Bearing (6303uu) (Ref #27)
27
Part #91051-KS4-003
Dust seal, 37x25x6 (Ref #28)
28
Part #91258-HB3-003
Валик (Ref #29)
29
Part #91259-KM1-003
PIN (Ref #30)
30
Part #9420125300
PIN (Ref #30)
30
Part #9420125300
PIN (Ref #30)
30
Part #9420125300
PIN (Ref #30)
30
Part #9420125300
-
642753-KJ9-004
Клапан, обод колеса
1Replaced by 42753-KJ9-003 Доступно: Нет в наличии
