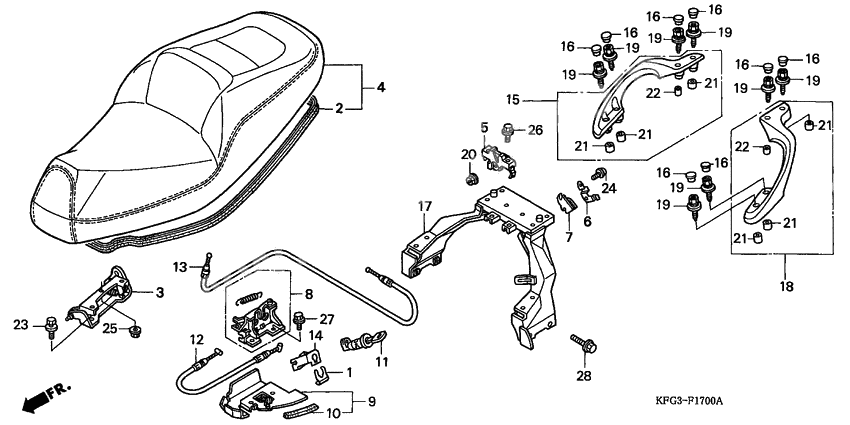

Seat
Seat
Пружина (Ref #1)
1
Part #75581-GN8-920
Rubber,seal (Ref #2)
2
Part #77105-KFG-000
Hinge comp,seat (Ref #3)
3
Part #77110-KFG-000
Seat comp,double (Ref #4)
4
Part #77200-KFG-680
Seat catch comp,r (Ref #5)
5
Part #77220-KFG-640
Seat catch comp (Ref #8)
8
Part #77230-KFG-000
Guide,seat catch (Ref #9)
9
Part #77232-KFG-000
Trim,seat catch g (Ref #10)
10
Part #77233-KFG-000
Key, seat lock (Ref #11)
11
Part #77239-196-017
Cable comp,seat l (Ref #12)
12
Part #77240-KFG-000
Cable b,seat open (Ref #13)
13
Part #77241-KFG-640
Stay,seat lock ca (Ref #14)
14
Part #77242-KFG-000
Grip r,rear *nh1* (Ref #15)
15
Part #77310-KFG-000ZB
Stay,rr.grip (Ref #17)
17
Part #77315-KFG-000
Grip l,rear *nh1* (Ref #18)
18
Part #77360-KFG-000ZB
Collar (8mm) (Ref #22)
22
Part #90324-300-000
Collar (8mm) (Ref #22)
22
Part #90324-300-000
Collar (8mm) (Ref #22)
22
Part #90324-300-000
Collar (8mm) (Ref #22)
22
Part #90324-300-000
Bolt-washer (Ref #23)
23
Part #93404-060-160-7
Гайка (Ref #25)
25
Part #94050-06000
BOLT (Ref #26)
26
Part #95701-060-120-7
BOLT (Ref #27)
27
Part #95701-060-160-7
Bolt, flange, 8x32 (Ref #28)
28
Part #95701-0803200
