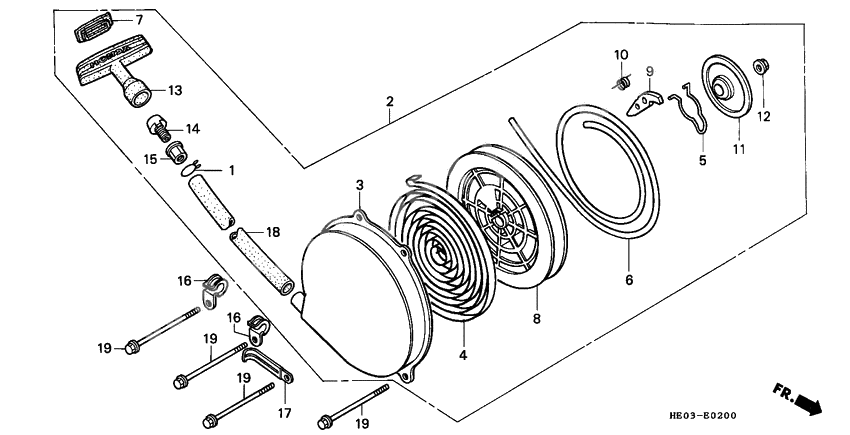

Starter assy recoil
Starter assy recoil
Clip, breather tube (Ref #1)
1
Part #17316-611-000
Starter assy.,rec (Ref #2)
2
Part #28400-HE0-004
Корпус стартера (Ref #3)
3
Part #28401-HE0-004
Пружина (Ref #4)
4
Part #28402-HE0-004
Spring return (Ref #5)
5
Part #28404-HE0-004
Rope recoil start (Ref #6)
6
Part #28407-HE0-004
Cap, knob (Ref #7)
7
Part #28414-958-004
Reel, recoil starter (Ref #8)
8
Part #28420-HE0-004
Ratchet, starter (Ref #9)
9
Part #28422-HE0-004
Spring return (Ref #10)
10
Part #28424-HE0-004
Плата (Ref #11)
11
Part #28431-HE0-004
Nut, flange (Ref #12)
12
Part #28448-HE0-000
Рукоятка статера (Ref #13)
13
Part #28461-958-003
Guide,start.knob (Ref #14)
14
Part #28463-950-010
Гайка,14MM (Ref #15)
15
Part #28464-950-003
CLIP (Ref #16)
16
Part #32906-GF4-700
CLIP (Ref #16)
16
Part #32906-GF4-700
CLIP (Ref #16)
16
Part #32906-GF4-700
CLIP (Ref #16)
16
Part #32906-GF4-700
Tube,12x335 (Ref #18)
18
Part #95005-123-353-0
