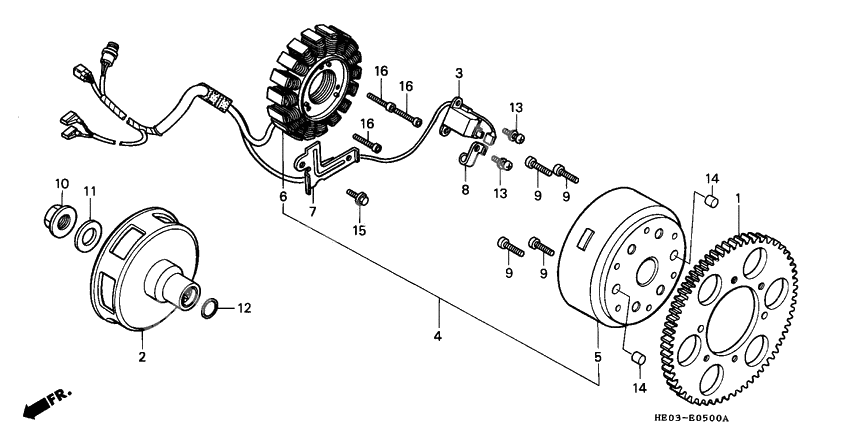

Generators
Generators
Шестерня (Ref #1)
1
Part #28111-HE0-000
Pulley, recoil (Ref #2)
2
Part #28431-HE0-000
Generator, pulse (Ref #3)
3
Part #30300-HA0-033
Ac gen assy (Ref #4)
4
Part #31100-HE0-013
Flywheel comp.(mi (Ref #5)
5
Part #31110-HE0-003
Stator comp (Ref #6)
6
Part #31120-HE0-013
Plate, wire setting (Ref #7)
7
Part #31130-HE0-000
Clamp, pulser wire (Ref #8)
8
Part #32911-HE0-000
Nut, flange (12mm) (Ref #10)
10
Part #90309-375-003
Шайба (Ref #11)
11
Part #90437-HE0-000
O-ring, 13.8x2.5 (Ref #12)
12
Part #91303-377-000
Screw-washer (Ref #13)
13
Part #93892-050-140-8
Screw-washer (Ref #13)
13
Part #93892-050-140-8
Screw-washer (Ref #13)
13
Part #93892-050-140-8
Screw-washer (Ref #13)
13
Part #93892-050-140-8
Dowel pin (Ref #14)
14
Part #94303-08140
Dowel pin (Ref #14)
14
Part #94303-08140
Dowel pin (Ref #14)
14
Part #94303-08140
Dowel pin (Ref #14)
14
Part #94303-08140
BOLT (Ref #15)
15
Part #95701-060-120-8
