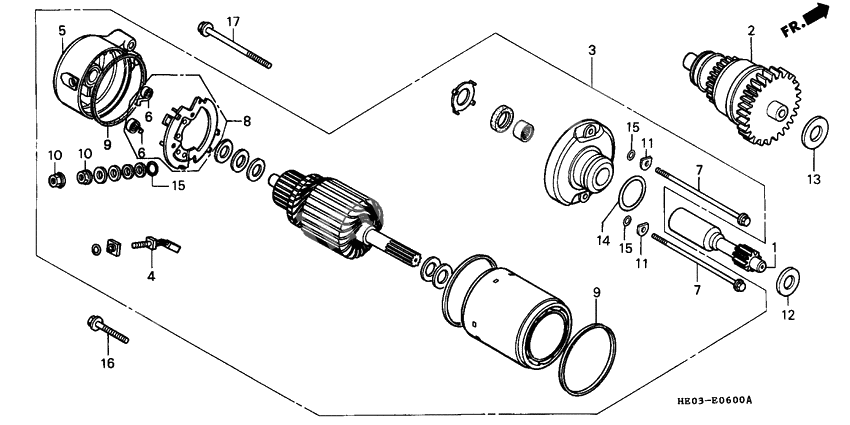

Starting motor
Starting motor
Gear comp,starter (Ref #1)
1
Part #28106-HE0-000
Pinion assy.,star (Ref #2)
2
Part #28120-HE0-003
Superceded (Ref #3)
3
Part #31200-HE0-013
Terminal set, brush (Ref #4)
4
Part #31201-KS5-901
Bracket, rr. (Ref #5)
5
Part #31203-HE0-003
Spring, carbon brush (Ref #6)
6
Part #31204-KS5-901
Spring, carbon brush (Ref #6)
6
Part #31204-KS5-901
Spring, carbon brush (Ref #6)
6
Part #31204-KS5-901
Spring, carbon brush (Ref #6)
6
Part #31204-KS5-901
Bolt, setting (Ref #7)
7
Part #31205-MN4-008
Bolt, setting (Ref #7)
7
Part #31205-MN4-008
Bolt, setting (Ref #7)
7
Part #31205-MN4-008
Bolt, setting (Ref #7)
7
Part #31205-MN4-008
Holder set, brush (Ref #8)
8
Part #31206-KW1-901
RING (Ref #9)
9
Part #31207-KS5-901
RING (Ref #9)
9
Part #31207-KS5-901
RING (Ref #9)
9
Part #31207-KS5-901
RING (Ref #9)
9
Part #31207-KS5-901
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Nut-washer, 6mm (Ref #10)
10
Part #90071-MB0-000
Washer, steel plate (Ref #11)
11
Part #90122-MN4-008
Washer, steel plate (Ref #11)
11
Part #90122-MN4-008
Washer, steel plate (Ref #11)
11
Part #90122-MN4-008
Washer, steel plate (Ref #11)
11
Part #90122-MN4-008
Washer, 10x24 (Ref #12)
12
Part #90414-GE0-000
Washer, 12mm (Ref #13)
13
Part #90452-708-000
Прокладка (Ref #14)
14
Part #91312-MG7-003
Bolt, flange, 6x35 (Ref #16)
16
Part #95701-0603500
Болт (Ref #17)
17
Part #95701-0608000
