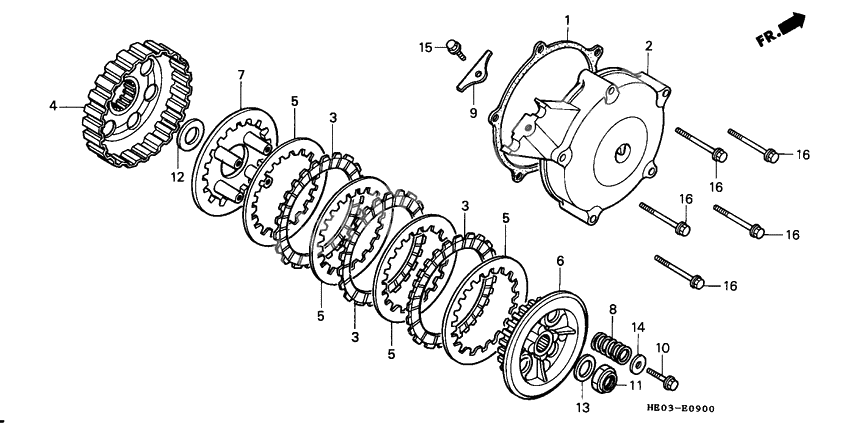

Torque clutch
Torque clutch
Gasket,r red cove (Ref #1)
1
Part #21198-HE0-P00
Cover,r.reduction (Ref #2)
2
Part #21311-HE0-000
Outer comp.,clutc (Ref #4)
4
Part #22310-HE0-670
Center,clutch (Ref #6)
6
Part #22321-HE0-000
Plate, clu press (Ref #7)
7
Part #22350-115-020
Пружина муфты (Ref #8)
8
Part #22401-HE0-000
Holder, change cable (Ref #9)
9
Part #24721-HE0-000
Bolt (6x22) (Ref #10)
10
Part #90050-357-000
Nut,lock,18mm (Ref #11)
11
Part #90235-429-000
Washer,20mm (Ref #12)
12
Part #90432-958-000
Шайба (Ref #13)
13
Part #90457-HE0-000
Шайба (Ref #14)
14
Part #94103-06000
BOLT (Ref #15)
15
Part #95701-060-140-0
