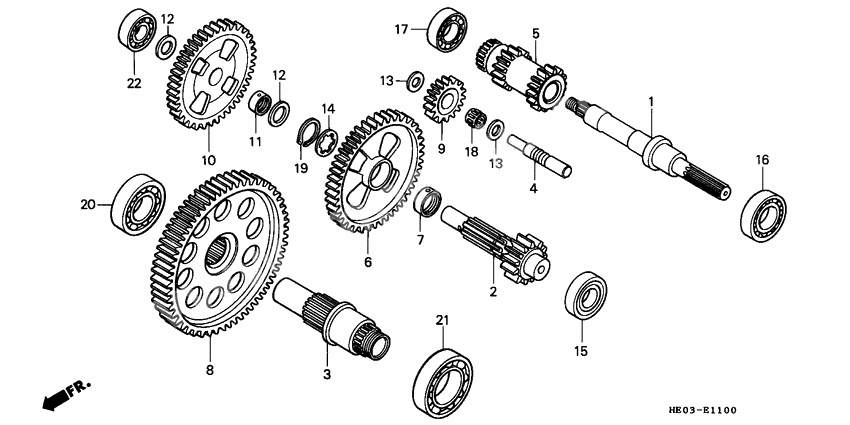

Reduction gear
Reduction gear
Shaft,primary (Ref #1)
1
Part #23211-HE0-000
SHAFT,COUNTER (Ref #2)
2
Part #23220-HE0-000
Shaft,final (Ref #3)
3
Part #23231-HE0-000
Shaft,reverse idl (Ref #4)
4
Part #23241-HE0-000
Gear,comp primary (Ref #5)
5
Part #23410-HE0-000
Gear,counter driv (Ref #6)
6
Part #23421-HE0-000
Collar,28x32x11 (Ref #7)
7
Part #23422-HE0-000
Gear,final (Ref #8)
8
Part #23431-HE0-000
Gear,revers idle (Ref #9)
9
Part #23521-HE0-000
Gear,revers drive (Ref #10)
10
Part #23531-HE0-000
Collar,17x21x10 (Ref #11)
11
Part #23532-HE0-000
Washer, thrust, 17.2mm (Ref #12)
12
Part #90403-KE7-000
Washer, thrust, 17.2mm (Ref #12)
12
Part #90403-KE7-000
Washer, thrust, 17.2mm (Ref #12)
12
Part #90403-KE7-000
Washer, thrust, 17.2mm (Ref #12)
12
Part #90403-KE7-000
Шайба (Ref #13)
13
Part #90462-107-000
Шайба (Ref #13)
13
Part #90462-107-000
Шайба (Ref #13)
13
Part #90462-107-000
Шайба (Ref #13)
13
Part #90462-107-000
Washer,thrust 28m (Ref #14)
14
Part #90458-HE0-000
Bearing (63/28) (Ref #15)
15
Part #91009-HC0-003
Brg,ball 32x65x14 (Ref #16)
16
Part #91007-HE0-004
Brg,ball 35x62x12 (Ref #17)
17
Part #91008-HE0-000
Brg,ndl 16x22x12 (Ref #18)
18
Part #91021-HE0-000
Circlip, external, 28mm (Ref #19)
19
Part #94510-28000
BEARING (Ref #20)
20
Part #96100-620-700-0
Brg,rad. (Ref #21)
21
Part #96100-620-900-0
B/brg,rad n/com (Ref #22)
22
Part #96120-630-301-0
