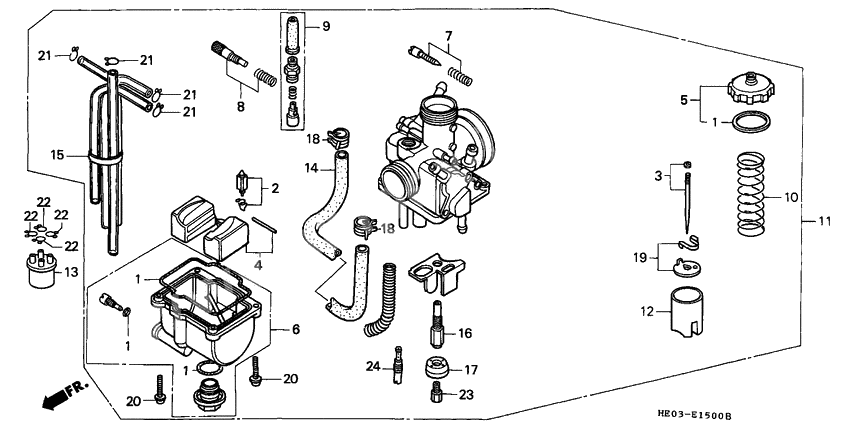

Carburetor assy
Carburetor assy
VALVE SET,FLOAT (Ref #2)
2
Part #16011-HE0-003
NEEDLE SET,JET (Ref #3)
3
Part #16012-HE0-003
FLOAT SET (Ref #4)
4
Part #16013-HA2-671
Top set (Ref #5)
5
Part #16014-VM0-661
Chamber set, float (Ref #6)
6
Part #16015-HE0-670
Screw set, a (Ref #7)
7
Part #16016-GB4-003
Screw set b (Ref #8)
8
Part #16028-HE0-003
Valve set,starter (Ref #9)
9
Part #16046-HE0-670
Spg,compress coil (Ref #10)
10
Part #16050-VM0-004
Карбюратор (Ref #11)
11
Part #16100-HE0-670
VALVE,THROTTLE (Ref #12)
12
Part #16111-HE0-003
Joint,carburetor (Ref #13)
13
Part #16121-HE0-670
TUBE (Ref #14)
14
Part #16143-HE0-003
TUBE (Ref #15)
15
Part #16199-HE0-670
Жиклер (Ref #16)
16
Part #16164-HE0-670
Holder, jet (Ref #17)
17
Part #16168-KA5-004
Clip, tube (Ref #18)
18
Part #16199-HE0-003
Clip, tube (Ref #18)
18
Part #16199-HE0-003
Clip, tube (Ref #18)
18
Part #16199-HE0-003
Clip, tube (Ref #18)
18
Part #16199-HE0-003
PLATE SET (Ref #19)
19
Part #16212-KA3-004
Болт (Ref #20)
20
Part #93500-040-160-H
Болт (Ref #20)
20
Part #93500-040-160-H
Болт (Ref #20)
20
Part #93500-040-160-H
Болт (Ref #20)
20
Part #93500-040-160-H
Jet, main (#135) (Ref #23)
23
Part #99101-3571350
Jet, main (#140) (Ref #23)
23
Part #99101-3571400
Jet, main (#138) (Ref #23)
23
Part #99101-3571380
Жиклер (Ref #24)
24
Part #99103-4400520
