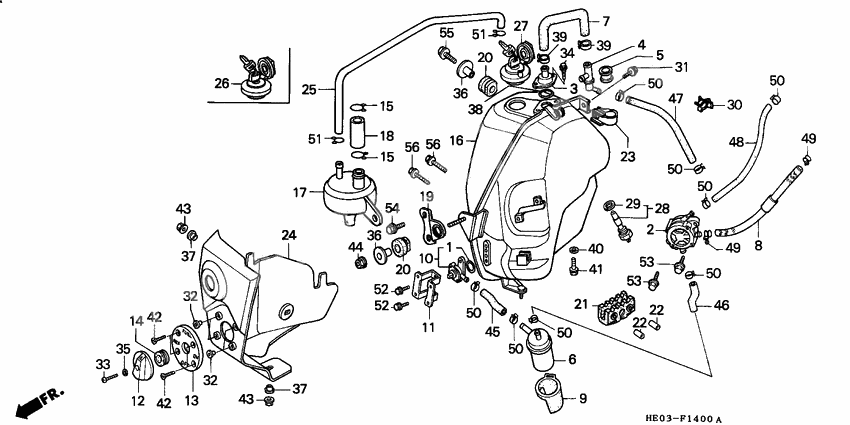

Tank fuel
Tank fuel
Прокладка (Ref #1)
1
Part #16077-HA7-671
Fuel pump assy (Ref #2)
2
Part #16700-HE0-013
Valve,fuel (Ref #3)
3
Part #16710-HE0-003
Joint,three way (Ref #4)
4
Part #16711-HE0-000
Rubber, fuel joint (Ref #5)
5
Part #16712-HE0-000
Strainer comp.,fu (Ref #6)
6
Part #16900-HE0-003
Tube a,fuel (Ref #7)
7
Part #16901-HE0-000
Tube b,fuel (Ref #8)
8
Part #16902-HE0-000
Holder, strainer (Ref #9)
9
Part #16915-HE0-000
Cock assy fuel (Ref #10)
10
Part #16950-HA7-671
Bracket, petcock b (Ref #11)
11
Part #16951-HE0-000
Lever, petcock (Ref #12)
12
Part #16952-HE0-000
Base,fuel cock (Ref #13)
13
Part #16953-MG7-000
Seal,fuelcock lev (Ref #14)
14
Part #16955-MG7-000
CLIP (Ref #15)
15
Part #17211-GJ4-710
CLIP (Ref #15)
15
Part #17211-GJ4-710
CLIP (Ref #15)
15
Part #17211-GJ4-710
CLIP (Ref #15)
15
Part #17211-GJ4-710
Tank comp,*nh105* (Ref #16)
16
Part #17500-HE0-000ZA
Tank, fuel catch (Ref #17)
17
Part #17517-HE0-670
Tube,catch tank (Ref #18)
18
Part #17518-HE0-670
Plate, tank setting (Ref #19)
19
Part #17533-HE0-000
Rubber, tank setting (Ref #20)
20
Part #17534-HE0-000
Rubber, tank setting (Ref #20)
20
Part #17534-HE0-000
Rubber, tank setting (Ref #20)
20
Part #17534-HE0-000
Rubber, tank setting (Ref #20)
20
Part #17534-HE0-000
Rubber, tank setting (Ref #21)
21
Part #17535-HE0-000
Collar, tank setting (Ref #22)
22
Part #17536-HE0-000
Collar, tank setting (Ref #22)
22
Part #17536-HE0-000
Collar, tank setting (Ref #22)
22
Part #17536-HE0-000
Collar, tank setting (Ref #22)
22
Part #17536-HE0-000
Clip, joint (3way) (Ref #23)
23
Part #17537-HE0-000
Guard *nh1* (Ref #24)
24
Part #17600-HE0-000ZA
Трубка (Ref #25)
25
Part #17618-HE0-670
Cap comp.,fuel fi (Ref #27)
27
Part #17620-HE0-671
Sensor,fuel reser (Ref #28)
28
Part #37810-MS8-008
Прокладка (Ref #29)
29
Part #37811-MB1-008
Clip a, fuel tube (Ref #30)
30
Part #50309-HE0-000
Bolt, flange, 5x10 (Ref #31)
31
Part #90002-GC3-000
Collar,screen set (Ref #32)
32
Part #90007-MA2-000
Collar,screen set (Ref #32)
32
Part #90007-MA2-000
Collar,screen set (Ref #32)
32
Part #90007-MA2-000
Collar,screen set (Ref #32)
32
Part #90007-MA2-000
Screw, pan (5x20) (Ref #33)
33
Part #90101-MG9-000
Bolt,flange,6mm (Ref #34)
34
Part #90112-MM9-000
Шайба (Ref #35)
35
Part #90404-SB0-010
Collar (8.3x16.5) (Ref #36)
36
Part #90502-HE0-000
Collar (8.3x16.5) (Ref #36)
36
Part #90502-HE0-000
Collar (8.3x16.5) (Ref #36)
36
Part #90502-HE0-000
Collar (8.3x16.5) (Ref #36)
36
Part #90502-HE0-000
Washer, rr. cover (Ref #37)
37
Part #90506-425-000
Washer, rr. cover (Ref #37)
37
Part #90506-425-000
Washer, rr. cover (Ref #37)
37
Part #90506-425-000
Washer, rr. cover (Ref #37)
37
Part #90506-425-000
Прокладка (Ref #38)
38
Part #91304-GC8-003
Clamp,d20 tube (Ref #39)
39
Part #91405-PE0-003
Clamp,d20 tube (Ref #39)
39
Part #91405-PE0-003
Clamp,d20 tube (Ref #39)
39
Part #91405-PE0-003
Clamp,d20 tube (Ref #39)
39
Part #91405-PE0-003
Washer,drain plug (Ref #40)
40
Part #91408-VM0-770
BOLT (Ref #41)
41
Part #92800-12000
Screw, flat, 4x20 (Ref #42)
42
Part #93600-040-200-G
Screw, flat, 4x20 (Ref #42)
42
Part #93600-040-200-G
Screw, flat, 4x20 (Ref #42)
42
Part #93600-040-200-G
Screw, flat, 4x20 (Ref #42)
42
Part #93600-040-200-G
ナット (Ref #43)
43
Part #94050-06070
ナット (Ref #43)
43
Part #94050-06070
ナット (Ref #43)
43
Part #94050-06070
ナット (Ref #43)
43
Part #94050-06070
Гайка (Ref #44)
44
Part #94050-08070
Tube,fuel,7.3x60 (Ref #45)
45
Part #95001-750-603-0
Tube,fuel,7.3x75 (Ref #46)
46
Part #95001-750-753-0
TUBE (Ref #47)
47
Part #95001-753-003-0
Tube,fuel,7.3x315 (Ref #48)
48
Part #95001-753-153-0
Clip, tube (a10) (Ref #49)
49
Part #95002-01100
Clip, tube (a10) (Ref #49)
49
Part #95002-01100
Clip, tube (a10) (Ref #49)
49
Part #95002-01100
Clip, tube (a10) (Ref #49)
49
Part #95002-01100
CLIP (Ref #51)
51
Part #95002-50000
CLIP (Ref #51)
51
Part #95002-50000
CLIP (Ref #51)
51
Part #95002-50000
CLIP (Ref #51)
51
Part #95002-50000
BOLT (Ref #52)
52
Part #96001-060-160-0
BOLT (Ref #52)
52
Part #96001-060-160-0
BOLT (Ref #52)
52
Part #96001-060-160-0
BOLT (Ref #52)
52
Part #96001-060-160-0
Болт (Ref #53)
53
Part #96300-0601600
Болт (Ref #53)
53
Part #96300-0601600
Болт (Ref #53)
53
Part #96300-0601600
Болт (Ref #53)
53
Part #96300-0601600
Болт (Ref #54)
54
Part #96300-0801407
Bolt,flange,8x30 (Ref #55)
55
Part #96300-0803007
Болт (Ref #56)
56
Part #96300-0804507
Болт (Ref #56)
56
Part #96300-0804507
Болт (Ref #56)
56
Part #96300-0804507
Болт (Ref #56)
56
Part #96300-0804507
-
5095002-412-000-0
Clamp d12.0,tube
8Replaced by 95002-412-000-4 Доступно: Нет в наличии
-
5496500-080-140-7
Bolt,flange,6x10
2Replaced by 96300-0801407 Доступно: Нет в наличии
-
5596500-080-300-7
Bolt,flange,8x30
1Replaced by 96300-0803007 Доступно: Нет в наличии
