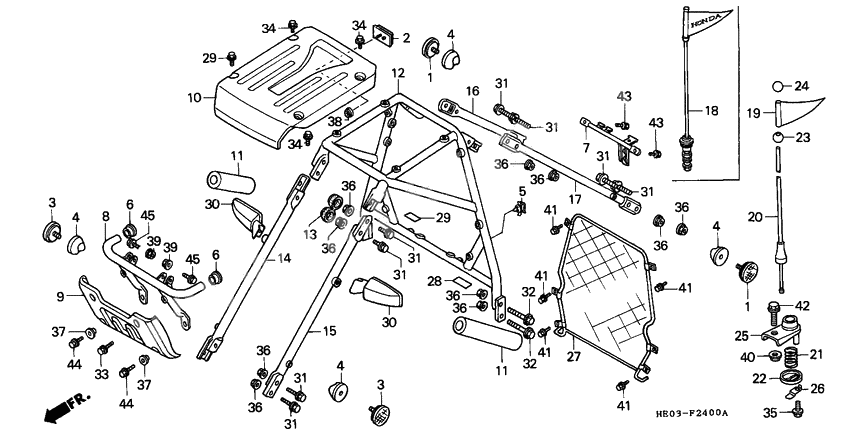

Roll bar
Roll bar
Reflector, rr. reflex (Ref #1)
1
Part #33741-HB9-641
Reflector, rr. reflex (Ref #1)
1
Part #33741-HB9-641
Reflector, rr. reflex (Ref #1)
1
Part #33741-HB9-641
Reflector, rr. reflex (Ref #1)
1
Part #33741-HB9-641
Reflector, reflex (Ref #2)
2
Part #33741-MC7-612
Reflector, fr. (Ref #3)
3
Part #33742-HB9-641
Reflector, fr. (Ref #3)
3
Part #33742-HB9-641
Reflector, fr. (Ref #3)
3
Part #33742-HB9-641
Reflector, fr. (Ref #3)
3
Part #33742-HB9-641
Clip c, wire (Ref #5)
5
Part #50317-HE0-000
Plate b, electric (Ref #7)
7
Part #50503-HE0-000
Bumper com*nh105* (Ref #8)
8
Part #62510-HE0-670ZA
Guard,fr. *r110* (Ref #9)
9
Part #62550-HE0-000ZA
Panel,roof *r110* (Ref #10)
10
Part #70110-HE0-000ZA
Pad,center roll b (Ref #11)
11
Part #71904-HE0-000
Pad,center roll b (Ref #11)
11
Part #71904-HE0-000
Pad,center roll b (Ref #11)
11
Part #71904-HE0-000
Pad,center roll b (Ref #11)
11
Part #71904-HE0-000
Bar,comp,ce*r110* (Ref #12)
12
Part #71910-HE0-000ZA
Cap,roll bar nut (Ref #13)
13
Part #71928-HE0-670
Bar comp.,r*r110* (Ref #14)
14
Part #71931-HE0-000ZA
Bar, l. fr. *r110* (Ref #15)
15
Part #71932-HE0-000ZA
Bar, r. rr. *r110* (Ref #16)
16
Part #71942-HE0-670ZA
Bar, l. rr. *r110* (Ref #17)
17
Part #71943-HE0-000ZA
Flag (Ref #19)
19
Part #77711-HE0-670
Pole comp.,flag (Ref #20)
20
Part #77712-HE0-670
Spring, flag pole (Ref #21)
21
Part #77713-HE0-670
Держатель пружины (Ref #22)
22
Part #77714-HE0-670
Pin,flag lower se (Ref #23)
23
Part #77716-HE0-670
Pin,flag upper se (Ref #24)
24
Part #77717-HE0-670
Stay, flag pole (Ref #25)
25
Part #77718-HE0-670
Plate, stopper (Ref #26)
26
Part #77722-HE0-670
Net, head retract (Ref #27)
27
Part #77800-HE0-000
LABEL (Ref #28)
28
Part #87105-HE0-631
Label, hot warning (Ref #28)
28
Part #87105-HE0-000
Superceded (Ref #29)
29
Part #87109-VM0-640
Superceded (Ref #29)
29
Part #87109-VM0-640
Superceded (Ref #29)
29
Part #87109-VM0-640
Superceded (Ref #29)
29
Part #87109-VM0-640
Mirror assy (Ref #30)
30
Part #88110-HE0-013
Mirror assy (Ref #30)
30
Part #88110-HE0-013
Mirror assy (Ref #30)
30
Part #88110-HE0-013
Mirror assy (Ref #30)
30
Part #88110-HE0-013
Болт (Ref #32)
32
Part #90102-HE0-670
Болт (Ref #32)
32
Part #90102-HE0-670
Болт (Ref #32)
32
Part #90102-HE0-670
Болт (Ref #32)
32
Part #90102-HE0-670
BOLT (Ref #33)
33
Part #90111-187-000
Болт (Ref #35)
35
Part #90105-MCE-750
Collar,fr.guard (Ref #37)
37
Part #90504-HE0-000
Collar,fr.guard (Ref #37)
37
Part #90504-HE0-000
Collar,fr.guard (Ref #37)
37
Part #90504-HE0-000
Collar,fr.guard (Ref #37)
37
Part #90504-HE0-000
Гайка (Ref #38)
38
Part #94050-05000
Гайка (Ref #39)
39
Part #94050-08070
Гайка (Ref #39)
39
Part #94050-08070
Гайка (Ref #39)
39
Part #94050-08070
Гайка (Ref #39)
39
Part #94050-08070
Nut, flange, 12mm (Ref #40)
40
Part #9405012000
Болт (Ref #42)
42
Part #95701-1202000
Болт (Ref #43)
43
Part #96300-0601207
Болт (Ref #43)
43
Part #96300-0601207
Болт (Ref #43)
43
Part #96300-0601207
Болт (Ref #43)
43
Part #96300-0601207
Болт (Ref #44)
44
Part #96300-0802007
Болт (Ref #44)
44
Part #96300-0802007
Болт (Ref #44)
44
Part #96300-0802007
Болт (Ref #44)
44
Part #96300-0802007
Болт (Ref #45)
45
Part #96400-0803507
Болт (Ref #45)
45
Part #96400-0803507
Болт (Ref #45)
45
Part #96400-0803507
Болт (Ref #45)
45
Part #96400-0803507
-
4496500-080-200-7
Bolt flange dr 8x
2Replaced by 96300-0802007 Доступно: Нет в наличии
-
4596500-080-350-7
Bolt,flange,8x35
2Replaced by 96400-0803507 Доступно: Нет в наличии
