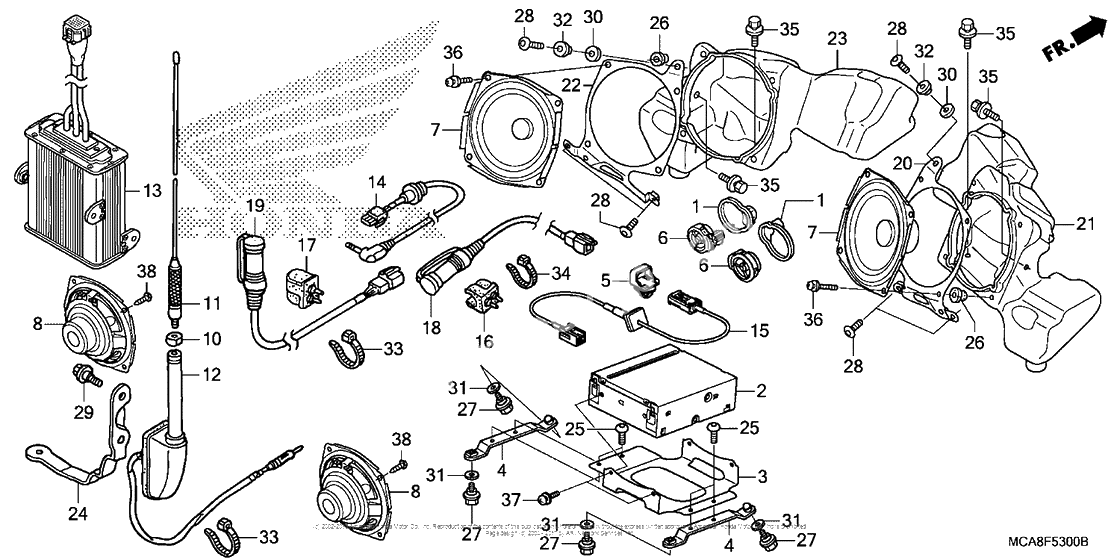

Audio unit
Audio unit
Cover, tweeter (Ref #1)
1
Part #33112-MCA-A70
Audio unit (Ref #2)
2
Part #39110-MCA-S41
Stay, audio (Ref #3)
3
Part #39111-MCA-S40
Base, stay audio (Ref #4)
4
Part #39112-MCA-S40
CLIP (Ref #5)
5
Part #39115-TK6-003
Speaker, tweeter (Ref #6)
6
Part #39120-MCA-S41
Speaker unit, fr. (Ref #7)
7
Part #39130-MCA-S41
Speaker unit, rr. (Ref #8)
8
Part #39140-MCA-S41
Nut, antenna (Ref #10)
10
Part #39153-MN5-003
Element, antenna (Ref #11)
11
Part #39157-MCA-305
Feeder, antenna (Ref #12)
12
Part #39158-MCA-S41
Усилитель (Ref #13)
13
Part #39160-MCA-S41
CORD (Ref #14)
14
Part #39170-MCA-000
CORD (Ref #14)
14
Part #39170-MCA-010
Cord assy., usb (Ref #15)
15
Part #39190-MCA-S41
Connector, fr. (Ref #16)
16
Part #39242-MCA-000
Соединение (Ref #17)
17
Part #39243-MCA-000
Lead, driver head se (Ref #18)
18
Part #39245-MCA-H90
Провод (Ref #19)
19
Part #39246-MCA-003
Plate, r (Ref #20)
20
Part #64237-MCA-A70
Box, r. fr. speaker (Ref #21)
21
Part #64243-MCA-S40
Plate, l (Ref #22)
22
Part #64247-MCA-A70
Box, l. fr. speaker (Ref #23)
23
Part #64248-MCA-S40
PLATE (Ref #24)
24
Part #81175-MCA-010
Screw, pan (6x10) (Ref #25)
25
Part #90106-GBB-710
Гайка (Ref #26)
26
Part #90111-KW3-003
Болт (Ref #27)
27
Part #90116-HP2-670
Screw, pan (6x14) (Ref #28)
28
Part #90118-MR1-000
Болт (Ref #29)
29
Part #90139-MCA-A60
Шайба (Ref #30)
30
Part #90148-SA0-000
Washer,rubber (Ref #31)
31
Part #90507-KCR-000
Шайба (Ref #32)
32
Part #90512-300-000
Band, wire, 165mm (black) (Ref #33)
33
Part #90651-KV6-003
Band, wire (black) (Ref #34)
34
Part #90652-KT1-771
Bolt-washer (Ref #35)
35
Part #93404-060-120-7
Screw-washer (5x20) (Ref #36)
36
Part #93892-0502007
Screw-washer (Ref #37)
37
Part #93893-050-120-0
Болт (Ref #38)
38
Part #93901-25280
