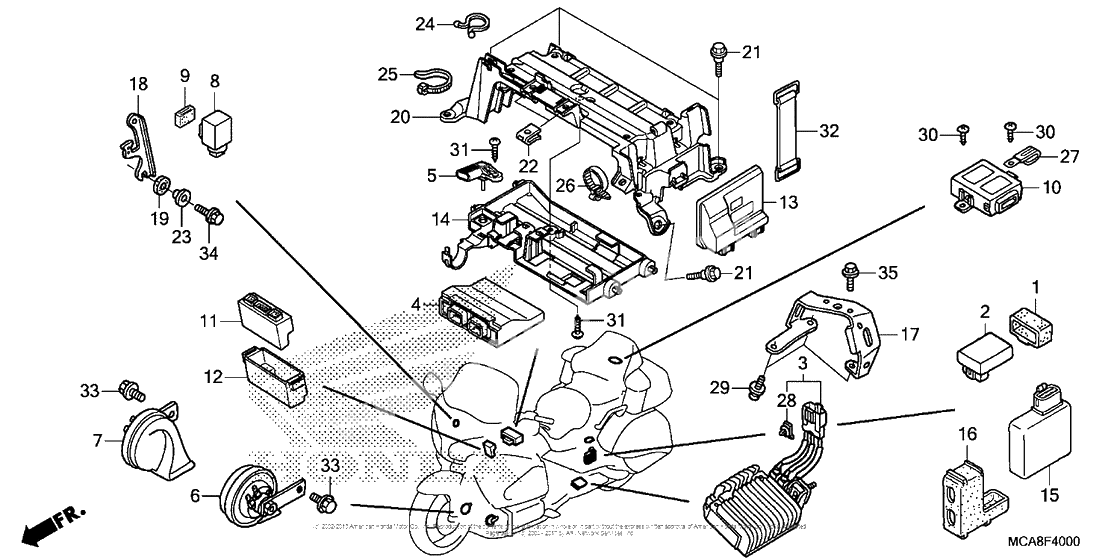

Control unit
Control unit
CUSHION (Ref #1)
1
Part #30401-MCA-010
CUSHION (Ref #1)
1
Part #30401-MCA-000
Regulator, reverse (Ref #2)
2
Part #31710-MCA-S41
Resistor, reverse (Ref #3)
3
Part #36280-MCA-A61
Контроллер (Ref #4)
4
Part #36700-MCA-S41
Sensor assy., map (Ref #5)
5
Part #37830-MEL-003
Звуковой сигнал (Ref #6)
6
Part #38110-MCA-003
Звуковой сигнал (Ref #7)
7
Part #38120-MCA-003
Relay, turn signal (Ref #8)
8
Part #38301-KTF-671
Suspension, winker relay (mitsuba) (Ref #9)
9
Part #38306-KK4-000
Блок управления (Ref #10)
10
Part #38380-MCA-S41
Abs control unit (Ref #11)
11
Part #38600-MCA-A71
CUSHION (Ref #12)
12
Part #38605-MCA-A80
Pgm-fi unit (Ref #13)
13
Part #38770-MCA-R63
Tray (Ref #14)
14
Part #38775-MCA-S40
Heater unit, seat (Ref #15)
15
Part #39305-MCA-S41
CUSHION (Ref #16)
16
Part #39310-MCA-A71
STAY (Ref #17)
17
Part #50331-MCA-S40
Plate, stay (upper) (Ref #18)
18
Part #64513-MCA-A60
Rubber, seat hinge (Ref #19)
19
Part #77218-GB2-720
Stay, shelter case (Ref #20)
20
Part #83120-MCA-S40
Bolt, fr. fender fixing (Ref #21)
21
Part #90106-MM9-000
Гайка,6MM (Ref #22)
22
Part #90344-GM9-000
Шайба (Ref #23)
23
Part #90512-MBY-000
Clip, purse lock (Ref #24)
24
Part #90630-751-000
Band, wire, 165mm (black) (Ref #25)
25
Part #90651-KV6-003
Ременная лента кабель (Ref #26)
26
Part #90672-SA0-003
CLIP (Ref #27)
27
Part #91411-679-000
CLIP (Ref #28)
28
Part #91556-SP0-003
Screw-washer (Ref #29)
29
Part #93892-050-080-8
Болт (Ref #30)
30
Part #93903-25280
Болт (Ref #31)
31
Part #93903-25480
Band b2, battery (Ref #32)
32
Part #9501213001
BOLT (Ref #33)
33
Part #95701-080-160-8
BOLT (Ref #34)
34
Part #96001-060-160-0
Bolt, flange, 6x16 (Ref #35)
35
Part #96001-0601607
