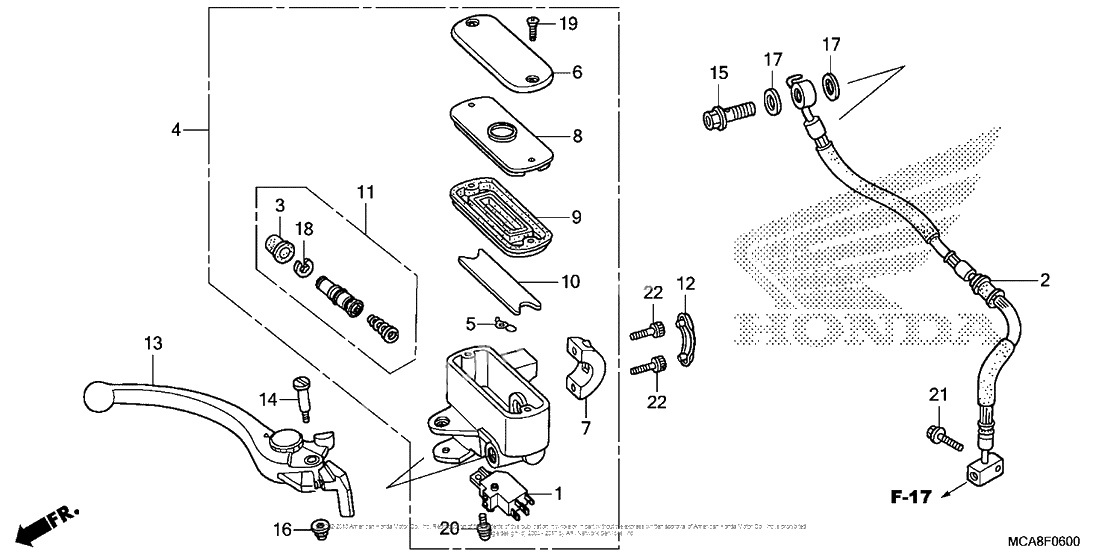

Передний тормозной цилиндр
Передний тормозной цилиндр
Switch assy., fr. (Ref #1)
1
Part #35340-MCA-S41
Main hose a, fr. (Ref #2)
2
Part #45124-MCA-003
Ботинок (Ref #3)
3
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #4)
4
Part #45510-MCA-305
PROTECTOR (Ref #5)
5
Part #45512-MA6-006
Cap, master cylinder (Ref #6)
6
Part #45513-MAM-A61
HOLDER (Ref #7)
7
Part #45517-MAM-A62
Пластина (Ref #8)
8
Part #45518-MM5-006
DIAPHRAGM (Ref #9)
9
Part #45520-MM5-006
Float, fr. (Ref #10)
10
Part #45523-MN5-006
Piston set, fr. (Ref #11)
11
Part #45530-MCA-006
CAP (Ref #12)
12
Part #45553-MAM-A60
Lever, r. handle (Ref #13)
13
Part #53170-MCA-305
Bolt, handlebar (Ref #14)
14
Part #90114-MG9-951
Bolt, oil (10x22) (Ref #15)
15
Part #90145-MS9-612
Nut, cap, 6mm (Ref #16)
16
Part #90202-ZV0-000
Шайба (Ref #17)
17
Part #90545-300-000
Circlip (Ref #18)
18
Part #90651-MA5-671
Болт (Ref #19)
19
Part #93600-040120G
Screw-washer (Ref #20)
20
Part #93893-040-120-7
BOLT (Ref #21)
21
Part #95801-060-250-7
Bolt, socket (6x20) (Ref #22)
22
Part #96600-0602017
