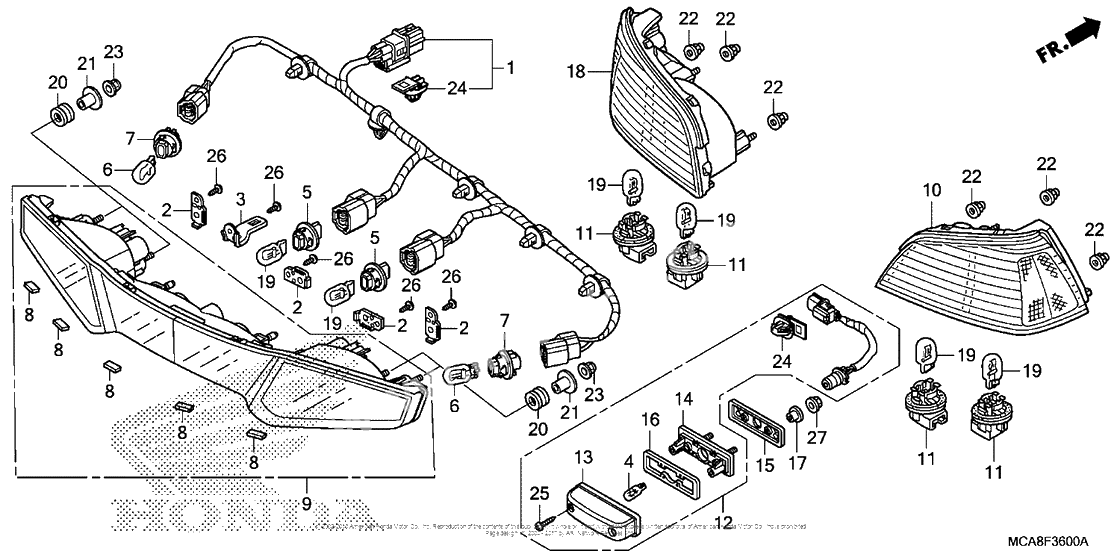

Задний фонарь (Стоп-сигнал)
Задний фонарь (Стоп-сигнал)
Sub-harness, rr. (Ref #1)
1
Part #32126-MCA-S40
Stay, 1 (Ref #2)
2
Part #32161-MCA-S41
Stay, 2 (Ref #3)
3
Part #32162-MCA-S41
Bulb (Ref #4)
4
Part #33301-SA0-741
ПАТРОН (Ref #5)
5
Part #33302-S5A-A01
Лампа (Ref #6)
6
Part #33303-S2R-003
ПАТРОН (Ref #7)
7
Part #33303-SAA-003
Rubber, spacer (Ref #8)
8
Part #33501-MCA-S41
Unit comp,rr comb (Ref #9)
9
Part #33510-MCA-315
Housing, r (Ref #10)
10
Part #33710-MCA-305
SOCKET (Ref #11)
11
Part #33720-GZ9-003
Light assy. (12v 5w) (Ref #12)
12
Part #33720-MJG-305
Cover, license (Ref #13)
13
Part #33721-GET-671
Base, license (Ref #14)
14
Part #33723-MER-D01
Rub, license light (Ref #15)
15
Part #33728-MFL-000
Прокладка (Ref #16)
16
Part #33729-MCZ-003
COLLAR (Ref #17)
17
Part #33731-MJ0-940
Housing, l. (Ref #18)
18
Part #33760-MCA-305
Bulb (12v 21/5w ece) (Ref #19)
19
Part #34906-MBB-611
Rubber, fr. fender mounting (Ref #20)
20
Part #61103-357-000
Collar, fr. fender (Ref #21)
21
Part #61104-428-010
Гайка (Ref #22)
22
Part #90167-SA0-980
Гайка (Ref #23)
23
Part #90207-RAA-A00
CLIP (Ref #24)
24
Part #91535-TA0-003
Болт (Ref #25)
25
Part #93901-24480
Болт (Ref #26)
26
Part #93913-25320
Гайка (Ref #27)
27
Part #94050-05080
-
2161104-428-000
Collar, fr. fender
1Replaced by 61104-428-010 Доступно: Нет в наличии
