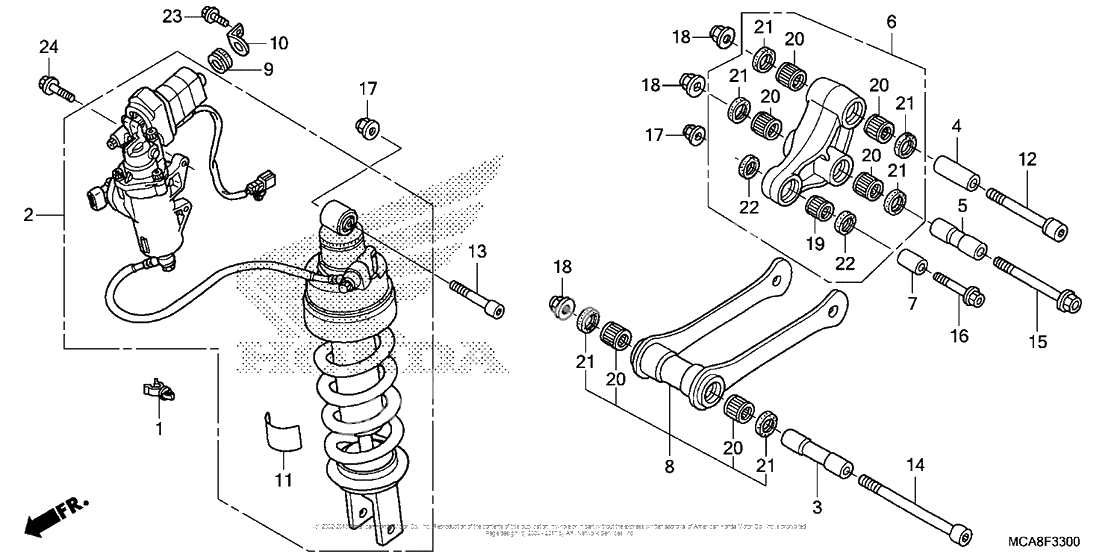

Задний амортизатор
Задний амортизатор
CLIP (Ref #1)
1
Part #17938-SE0-941
Cushion assy., rr. (Ref #2)
2
Part #52400-MCA-305
COLLAR (Ref #3)
3
Part #52462-MCA-000
Collar a (Ref #4)
4
Part #52463-MAW-760
Collar c (Ref #5)
5
Part #52463-MCA-000
Arm sub-assy. (Ref #6)
6
Part #52465-MCA-000
Collar c (Ref #7)
7
Part #52465-MY1-000
Rod sub-assy. (Ref #8)
8
Part #52475-MCA-000
GROMMET (Ref #9)
9
Part #52491-MCA-000
Stay, motor (Ref #10)
10
Part #52492-MCA-000
Label, rr. (Ref #11)
11
Part #87516-KV6-610
Bolt, socket (12x90) (Ref #12)
12
Part #90110-MCA-000
Bolt, socket (10x55) (Ref #13)
13
Part #90110-ML7-000
Bolt (12x127) (Ref #14)
14
Part #90111-MCA-000
Болт (Ref #15)
15
Part #90123-MCA-000
Болт (Ref #16)
16
Part #90153-KF0-000
Nut, u, 10mm (Ref #17)
17
Part #90304-GE8-003
Nut, flange, 12mm (Ref #18)
18
Part #90306-KF0-003
Bearing (17x24x17) (Ref #19)
19
Part #91071-MY1-005
Bearing (20x26x20) (Ref #20)
20
Part #91072-MY1-005
DUST SEAL (Ref #21)
21
Part #91254-KS6-003
САЛЬНИК ВТУЛКИ АМОРТИЗАТОРА (Ref #22)
22
Part #91262-KV3-831
BOLT (Ref #23)
23
Part #95701-060-120-0
BOLT (Ref #24)
24
Part #95701-080-250-0
