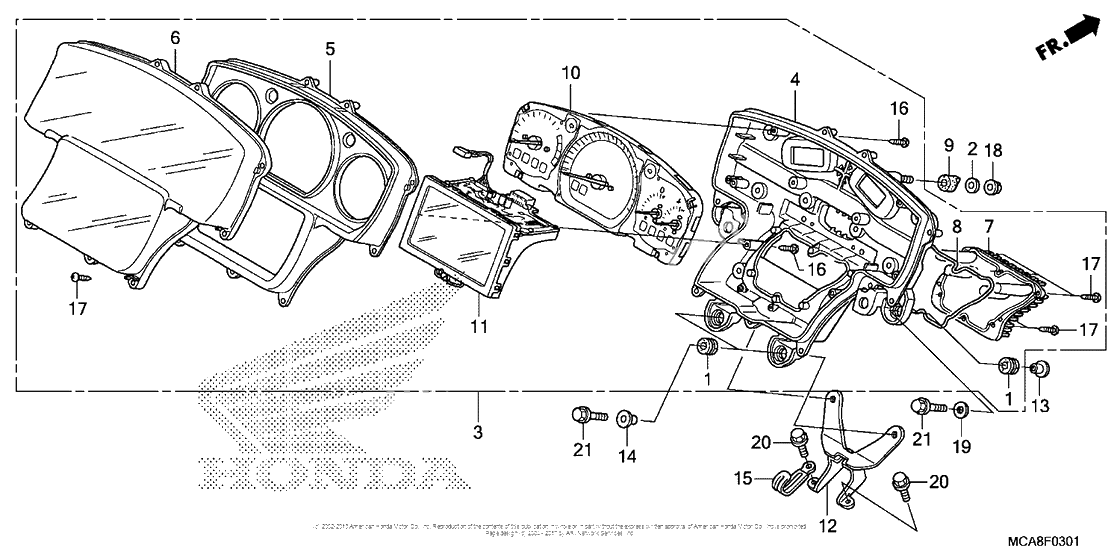

Speedometer (navigation)
Speedometer (navigation)
Grommet, air cleaner case (Ref #1)
1
Part #17251-KE8-690
Washer, pivot (Ref #2)
2
Part #17936-921-000
Meter, combination (Ref #3)
3
Part #37100-MCA-307
Meter, combination (Ref #3)
3
Part #37100-MCA-306
Meter, combination (Ref #3)
3
Part #37100-MCA-308
Case assy. (lower) (Ref #4)
4
Part #37101-MCA-A81
Plate, reflecting (Ref #5)
5
Part #37102-MCA-H31
Линза (Ref #6)
6
Part #37103-MCA-305
Heat sink (Ref #7)
7
Part #37104-MCA-H31
Прокладка (Ref #8)
8
Part #37105-MCA-H31
RUBBER (Ref #9)
9
Part #37109-MBG-000
Meter, combination (Ref #10)
10
Part #37110-MCA-308
Meter, combination (Ref #10)
10
Part #37110-MCA-307
Meter, combination (Ref #10)
10
Part #37110-MCA-306
Lcd assy., color (Ref #11)
11
Part #37230-MCA-306
Stay, meter mounting (Ref #12)
12
Part #53133-MCA-A61
Collar, fuel tank (Ref #13)
13
Part #90509-750-000
COLLAR (Ref #14)
14
Part #90522-KF0-000
Clip, wire (Ref #15)
15
Part #91406-166-000
Болт (Ref #16)
16
Part #93903-22420
Болт (Ref #17)
17
Part #93903-24420
Гайка (Ref #18)
18
Part #94050-06080
Шайба (Ref #19)
19
Part #94103-06000
BOLT (Ref #20)
20
Part #96001-060-100-7
BOLT (Ref #21)
21
Part #96001-060-200-0
