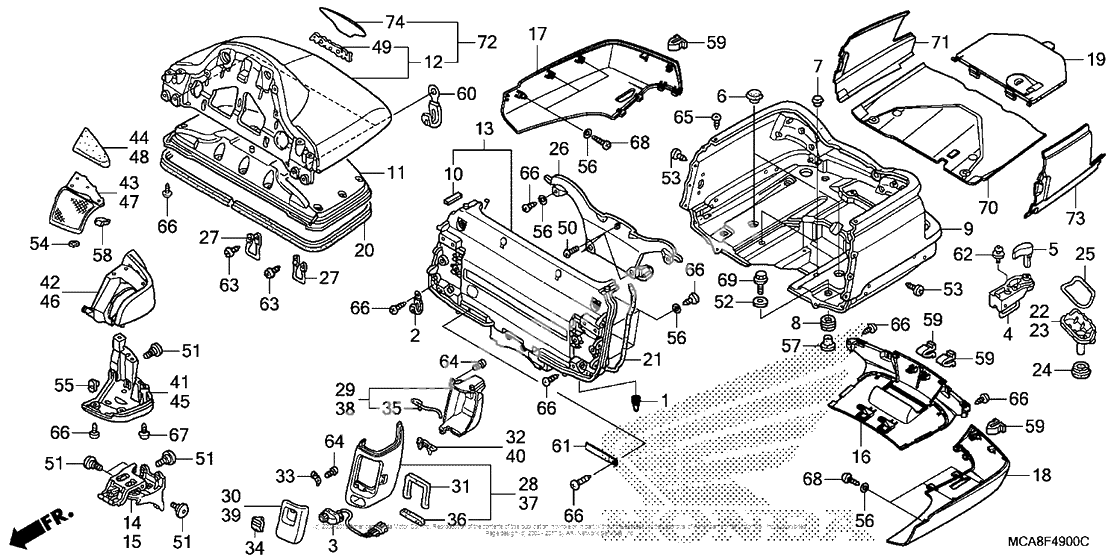

Trunk box
Trunk box
Трубка дренажная (Ref #1)
1
Part #17358-VM4-000
Clip, pulser cord (Ref #2)
2
Part #32925-958-000
Switch assy (Ref #3)
3
Part #39500-MCA-S41
Holder assy., helmet (Ref #4)
4
Part #50710-MCA-003
Knob, helmet holder (Ref #5)
5
Part #50714-MCA-S40
Cap, main stand pipe (Ref #6)
6
Part #50750-MB0-000
Rubber, stopper (Ref #7)
7
Part #80105-MAH-610
RUBBER (Ref #8)
8
Part #80202-MCA-000
Box, trunk *nha30m* (Ref #9)
9
Part #81110-MJK-A80ZE
Box, trunk *nhb01* (Ref #9)
9
Part #81110-MJK-A80ZD
Box, trunk *r342c* (Ref #9)
9
Part #81110-MJK-A80ZA
Seal, trunk panel (Ref #10)
10
Part #81112-MCA-S40
Inner lid, trunk (Ref #11)
11
Part #81123-MCA-000
Panel set, fr. trunk (Ref #13)
13
Part #81129-MCA-S50
Panel set, fr. trunk (Ref #13)
13
Part #81129-MCA-S40
Петля (Ref #14)
14
Part #81130-MCA-000
Петля (Ref #15)
15
Part #81135-MCA-A60
Cvr, trunk *nha30m* (Ref #16)
16
Part #81141-MCA-S40ZF
Cover, trunk *nhb01* (Ref #16)
16
Part #81141-MCA-S40ZB
Cover, trunk *r342c* (Ref #16)
16
Part #81141-MCA-S40ZG
Cover, r. *r342c* (Ref #17)
17
Part #81143-MCA-S40ZG
Cover, r. *nha30m* (Ref #17)
17
Part #81143-MCA-S40ZF
Cover, r. *nhb01* (Ref #17)
17
Part #81143-MCA-S40ZB
Cover, l. *nha30m* (Ref #18)
18
Part #81148-MCA-S40ZF
Cover, l. *r342c* (Ref #18)
18
Part #81148-MCA-S40ZG
Cover, l. *nhb01* (Ref #18)
18
Part #81148-MCA-S40ZB
Cover, trunk (inner) (Ref #19)
19
Part #81171-MCA-S40
Rubber, trunk seal (Ref #20)
20
Part #81181-MCA-000
Rubber, fr. panel (Ref #21)
21
Part #81183-MCA-000
Cvr, r. trunk light (Ref #22)
22
Part #81191-MCA-000
Cvr, l. trunk light (Ref #23)
23
Part #81192-MCA-000
Rubber (lower) (Ref #24)
24
Part #81193-MCA-000
Rubber (upper) (Ref #25)
25
Part #81194-MCA-000
Cover, trunk catch (Ref #26)
26
Part #81309-MCA-000
Скоба крышки багажника (Ref #27)
27
Part #81328-MCA-780
Outer, r. *nh1* (Ref #28)
28
Part #82111-MCA-A60ZA
Обойма коллектора (Ref #29)
29
Part #82112-MCA-A60
LID, RH TRUNK POCKET *NH1* (BLACK) (Ref #30)
30
Part #82120-MCA-A60ZA
Rubber a (Ref #31)
31
Part #82130-MCA-300
Rubber, r. hinge (Ref #32)
32
Part #82141-MCA-A60
Spring, trunk pocket (Ref #33)
33
Part #82150-MCA-000
Lever *nh1* (Ref #34)
34
Part #82160-MCA-A60ZA
Rubber c (Ref #35)
35
Part #82190-MCA-A60
RUBBER (Ref #36)
36
Part #82207-MCA-A60
Outer, l. *nh1* (Ref #37)
37
Part #82211-MCA-A60ZA
Inner, l (Ref #38)
38
Part #82212-MCA-A60
LID, LH TRUNK POCKET *NH1* (BLACK) (Ref #39)
39
Part #82220-MCA-A60ZA
Rubber, l. hinge (Ref #40)
40
Part #82241-MCA-A60
Body, r. *nh1* (Ref #41)
41
Part #82310-MCA-A60ZA
Cover a, r. *nh1* (Ref #42)
42
Part #82320-MCA-A60ZA
Cover b, r. *nh1* (Ref #43)
43
Part #82330-MCA-S40ZA
Cushion, r. *nh1* (Ref #44)
44
Part #82340-MCA-A60ZA
Body, l. *nh1* (Ref #45)
45
Part #82410-MCA-A60ZA
Cover a, l. *nh1* (Ref #46)
46
Part #82420-MCA-A60ZA
Cover b, l. *nh1* (Ref #47)
47
Part #82430-MCA-S40ZA
Cushion, l. *nh1* (Ref #48)
48
Part #82440-MCA-A60ZA
Emblem, rr. trunk (Ref #49)
49
Part #87111-MCA-A60
Screw, pan (5x12) (Ref #50)
50
Part #90104-964-000
Screw, pan (6x11) (Ref #51)
51
Part #90106-KY2-701
Washer, tank setting (Ref #52)
52
Part #90136-428-870
Screw, tap (5x12) (Ref #53)
53
Part #90140-MCA-000
Nut, clip (Ref #54)
54
Part #90301-GE0-000
Nut, special (6mm) (Ref #55)
55
Part #90302-MN5-300
ШАЙБА КРЕПЛЕНИЯ (Ref #56)
56
Part #90504-964-000
Colr, trunk mounting (Ref #57)
57
Part #90505-MCA-000
CLIP (Ref #58)
58
Part #90666-S84-A01
CLIP (Ref #59)
59
Part #90666-SDA-A01
Clip, wire harness (Ref #60)
60
Part #91405-MG1-000
Clip (2x70) (Ref #61)
61
Part #91410-MN1-671
Screw-washer (Ref #62)
62
Part #93893-060-120-7
Болт (Ref #63)
63
Part #93901-25380
Болт (Ref #64)
64
Part #93903-24280
Болт (Ref #65)
65
Part #93903-25080
Болт (Ref #66)
66
Part #93903-25280
Болт (Ref #67)
67
Part #93903-25380
Болт (Ref #68)
68
Part #93913-25380
BOLT (Ref #69)
69
Part #96001-060-280-0
MAT, TRUNK BOX (Ref #70)
70
Part #81115-MJK-A80
MAT, R. (Ref #71)
71
Part #81120-MJK-A80
Lid set (type1) (Ref #72)
72
Part #81125-MJK-G40ZA
Lid set *nha30m* (Ref #72)
72
Part #81125-MJK-A80ZC
Lid set *nhb01* (Ref #72)
72
Part #81125-MJK-A80ZB
MAT, L. (Ref #73)
73
Part #81130-MJK-A80
Emblem (type1) (Ref #74)
74
Part #86819-MJK-A80ZA
