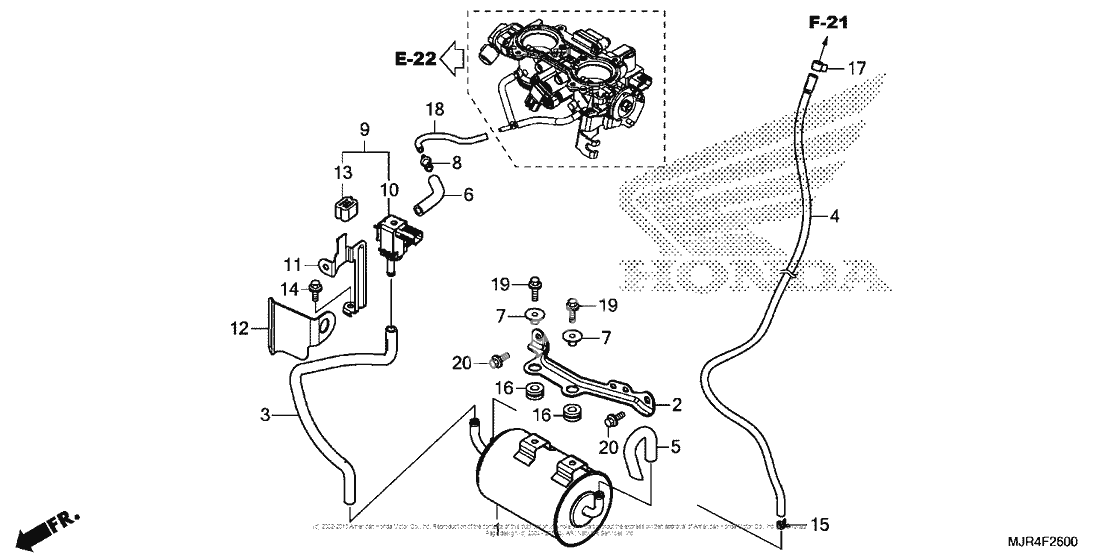

Evap canister
Evap canister
Canister (Ref #1)
1
Part #17410-MJR-671
Stay, canister (Ref #2)
2
Part #17411-MCA-000
TUBE (Ref #3)
3
Part #17412-MCA-000
Tube a, air breather (Ref #4)
4
Part #17413-MJR-670
Tube b, air breather (Ref #5)
5
Part #17414-MCA-000
Tube c, air breather (Ref #6)
6
Part #17415-MCA-000
Collar, silencer (Ref #7)
7
Part #18357-KA4-710
Joint, tube (Ref #8)
8
Part #19126-KM1-010
Valve assy. (Ref #9)
9
Part #36160-P8E-A02
Клапан (Ref #10)
10
Part #36162-P8E-A02
Stay, harness (Ref #11)
11
Part #36165-MJR-670
Sheet, purge control solenoid valve (Ref #12)
12
Part #36166-MJR-670
КОЛЬЦО РЕЗИНОВ. (Ref #13)
13
Part #36166-P0A-A01
Bolt, flange (6x14) (Ref #14)
14
Part #90001-MJR-670
Clamp, tube (8.0) (Ref #15)
15
Part #90652-KSJ-A21
Rubber, control box (Ref #16)
16
Part #90852-898-000
CLAMP (Ref #17)
17
Part #95002-410-000-4
Bulk hose (3.5x1000) (Ref #18)
18
Part #95005-350-0120M
BOLT (Ref #19)
19
Part #95701-060-200-0
BOLT (Ref #20)
20
Part #96001-060-140-0
