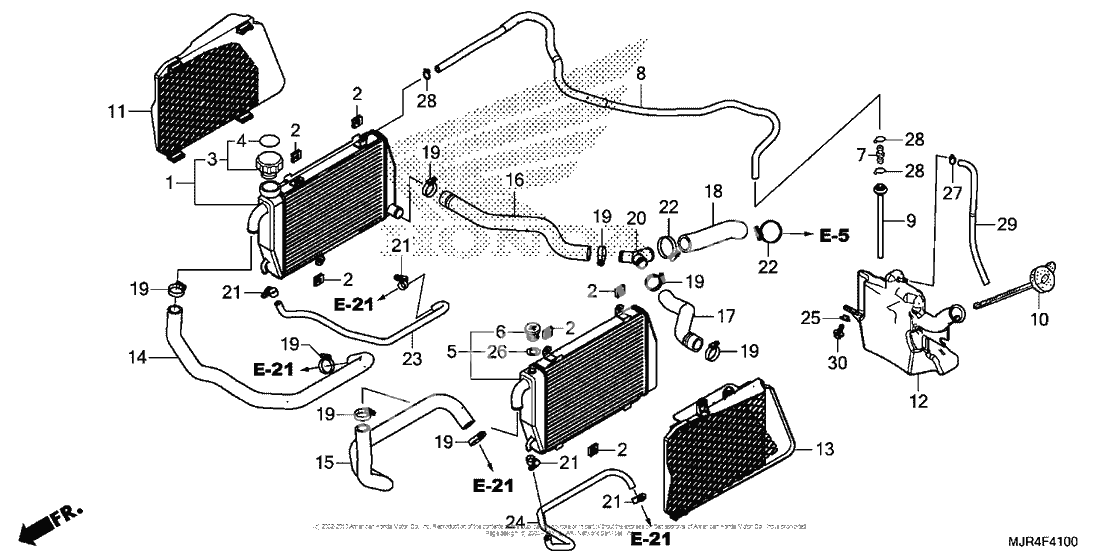

Радиатор
Радиатор
Radiator, r. (coo) (Ref #1)
1
Part #19010-MJR-305
Nut, set (Ref #2)
2
Part #19014-KEA-003
Крышка радиатора (Ref #3)
3
Part #19045-MY3-621
Seal, radiator cap (Ref #4)
4
Part #19055-MV9-881
Radiator, l. (coo) (Ref #5)
5
Part #19060-MJR-305
Petcock, drain (Ref #6)
6
Part #19071-MEC-003
Joint, tube (Ref #7)
7
Part #19102-KT8-000
Tube, reserve tank (Ref #8)
8
Part #19102-MJR-670
Tube, level (Ref #9)
9
Part #19102-ML7-701
Cap, reserve tank (Ref #10)
10
Part #19104-MCA-000
Grille, r. radiator (Ref #11)
11
Part #19105-MJR-670
Tank assy., reserve (Ref #12)
12
Part #19110-MCA-000
Grille, l. radiator (Ref #13)
13
Part #19205-MJR-670
Hose, r. fr. radiator (Ref #14)
14
Part #19501-MJR-670
Hose, l. fr. radiator (Ref #15)
15
Part #19502-MJR-670
Hose, r. rr. (Ref #16)
16
Part #19503-MCA-A60
Hose, l. rr. (Ref #17)
17
Part #19504-MCA-A60
Hose, rr. radiator (Ref #18)
18
Part #19505-MCA-000
Clamper, water hose (Ref #19)
19
Part #19505-ML3-770
Joint, three-way (Ref #20)
20
Part #19506-MCA-000
Clamp, water hose (Ref #21)
21
Part #19507-MAL-600
Clamp, radiator hose (Ref #22)
22
Part #19509-MM5-003
Hose, r. drain (Ref #23)
23
Part #19520-MCA-A60
Hose, l. drain (Ref #24)
24
Part #19525-MCA-A60
Washer, chain case setting (Ref #25)
25
Part #90522-028-000
Прокладка (Ref #26)
26
Part #91353-MEC-003
CLIP (Ref #27)
27
Part #95002-02100
CLIP (Ref #28)
28
Part #95002-02120
Bulk hose (5.5x8000) (Ref #29)
29
Part #95005-550-0810M
BOLT (Ref #30)
30
Part #95701-060-160-0
-
-
