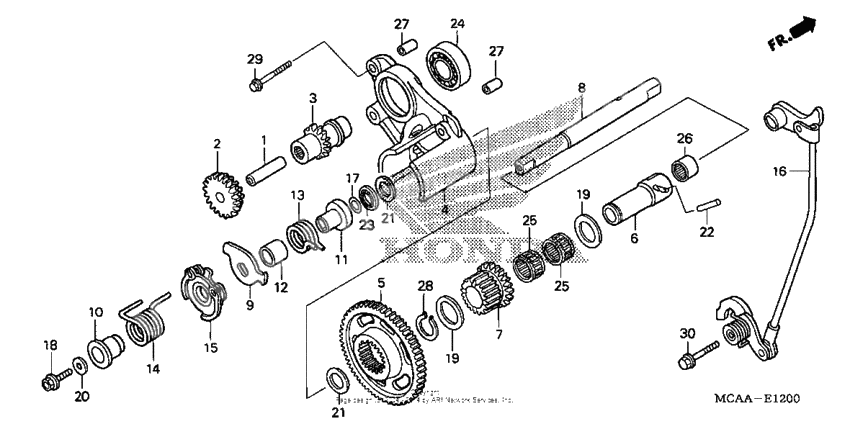

Reverse gear

Reverse gear

Reverse gear
Pin, piston (Ref #1)
1
Part #13111-892-000
Gear (17/18t) (Ref #2)
2
Part #28106-MCA-000
Gear (11t) (Ref #3)
3
Part #28141-MCA-000
HOLDER (Ref #4)
4
Part #28150-MCA-000
Шестерня (Ref #5)
5
Part #28162-MN5-000
Shifter, reverse (Ref #6)
6
Part #28165-MN5-000
Шестерня (Ref #7)
7
Part #28171-MN5-000
SHAFT (Ref #8)
8
Part #28211-MN5-000
Plate, lost motion (Ref #9)
9
Part #28215-MCA-000
COLLAR (Ref #10)
10
Part #28218-MCA-000
COLLAR (Ref #11)
11
Part #28219-MN5-010
Bush, reverse spring (Ref #12)
12
Part #28221-MN5-000
Пружина (Ref #13)
13
Part #28224-MCA-000
Spring, lost motion (Ref #14)
14
Part #28226-MCA-000
Drum, reverse (Ref #15)
15
Part #28241-MCA-A00
Arm, shift drum lock (Ref #16)
16
Part #28250-MCA-000
Прокладка (Ref #17)
17
Part #51996-SA5-800
Болт (Ref #18)
18
Part #90014-MN5-000
Washer b (30x1.7) (Ref #19)
19
Part #90409-ML4-610
Washer b (30x1.7) (Ref #19)
19
Part #90409-ML4-610
Washer b (30x1.7) (Ref #19)
19
Part #90409-ML4-610
Washer b (30x1.7) (Ref #19)
19
Part #90409-ML4-610
Шайба (Ref #20)
20
Part #90485-VM0-000
Washer, 12.2x23x1.6 (Ref #21)
21
Part #90492-MN5-000
Washer, 12.2x23x1.6 (Ref #21)
21
Part #90492-MN5-000
Washer, 12.2x23x1.6 (Ref #21)
21
Part #90492-MN5-000
Washer, 12.2x23x1.6 (Ref #21)
21
Part #90492-MN5-000
Roller (5x25) (Ref #22)
22
Part #90702-MN5-000
Bearing (12mm) (Ref #23)
23
Part #91001-147-006
Bearing, radial ball, 6904 (ntn) (Ref #24)
24
Part #91007-MN5-003
Bearing, needle, 20x24x17 (Ref #25)
25
Part #91051-727-000
Bearing, needle, 20x24x17 (Ref #25)
25
Part #91051-727-000
Bearing, needle, 20x24x17 (Ref #25)
25
Part #91051-727-000
Bearing, needle, 20x24x17 (Ref #25)
25
Part #91051-727-000
Bearing, needle, 14mm (toyo) (Ref #26)
26
Part #91101-121-691
Dowel pin (Ref #27)
27
Part #94301-08140
Dowel pin (Ref #27)
27
Part #94301-08140
Dowel pin (Ref #27)
27
Part #94301-08140
Dowel pin (Ref #27)
27
Part #94301-08140
Circlip (Ref #28)
28
Part #94510-20000
BOLT (Ref #29)
29
Part #95701-060-320-8
BOLT (Ref #30)
30
Part #95801-060-280-8
+ -
