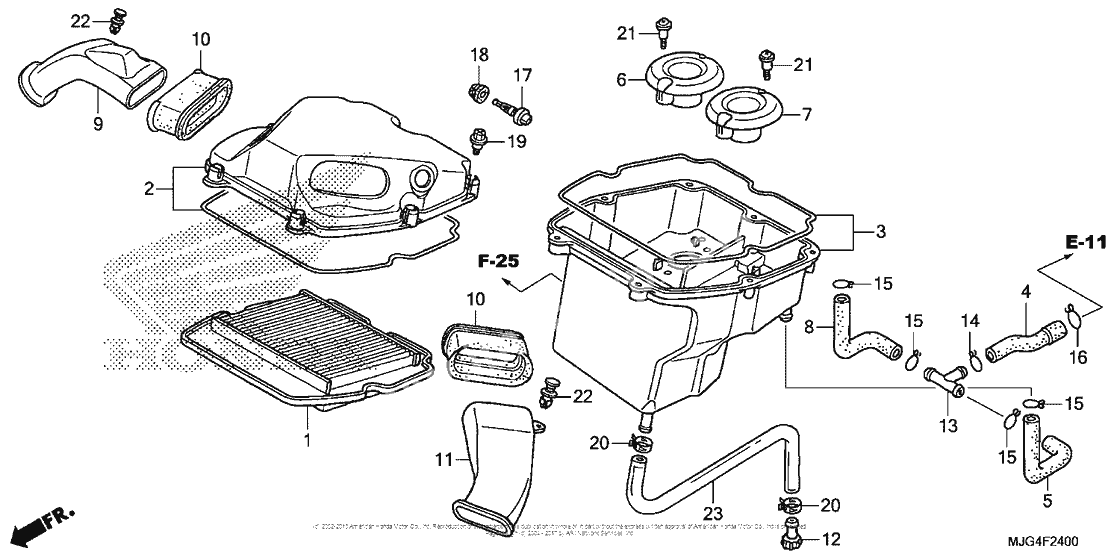

Воздушный фильтр
Воздушный фильтр
Фильтр воздушный (Ref #1)
1
Part #17210-MCA-A60
Cover, air cleaner (Ref #2)
2
Part #17221-MCA-A80
Housing, air cleaner (Ref #3)
3
Part #17231-MCA-A80
Tube c, breather (Ref #4)
4
Part #17233-MCA-000
Tube b, breather (Ref #5)
5
Part #17235-MCA-000
Funnel, r. air (Ref #6)
6
Part #17237-MCA-013
Funnel, l. air (Ref #7)
7
Part #17239-MCA-013
Tube a, breather (Ref #8)
8
Part #17245-MCA-000
Duct, r. (Ref #9)
9
Part #17251-MCA-S40
Rubber, duct (Ref #10)
10
Part #17252-MCA-A61
Duct, l. (Ref #11)
11
Part #17254-MCA-S40
Plug, breather tube (Ref #12)
12
Part #17370-382-870
JOINT (Ref #13)
13
Part #17420-MCA-000
Clip, breather tube (Ref #14)
14
Part #17554-MB0-000
CLIP (Ref #15)
15
Part #17724-102-700
CLIP (Ref #16)
16
Part #18532-634-670
Сенсор температуры воздуха (Ref #17)
17
Part #37880-MCA-003
Grommet, ta sensor (Ref #18)
18
Part #37881-MCA-003
Bolt, special (5mm) (Ref #19)
19
Part #90112-MCA-A80
Clamp, tube (14.0) (Ref #20)
20
Part #90651-HM3-A71
Screw, pan (5mm) (Ref #21)
21
Part #91508-MM5-000
Clip, panel fixing (Ref #22)
22
Part #91549-MCA-000
Tube, vinyl (11x15x420) (95003 (Ref #23)
23
Part #95003-3704231
