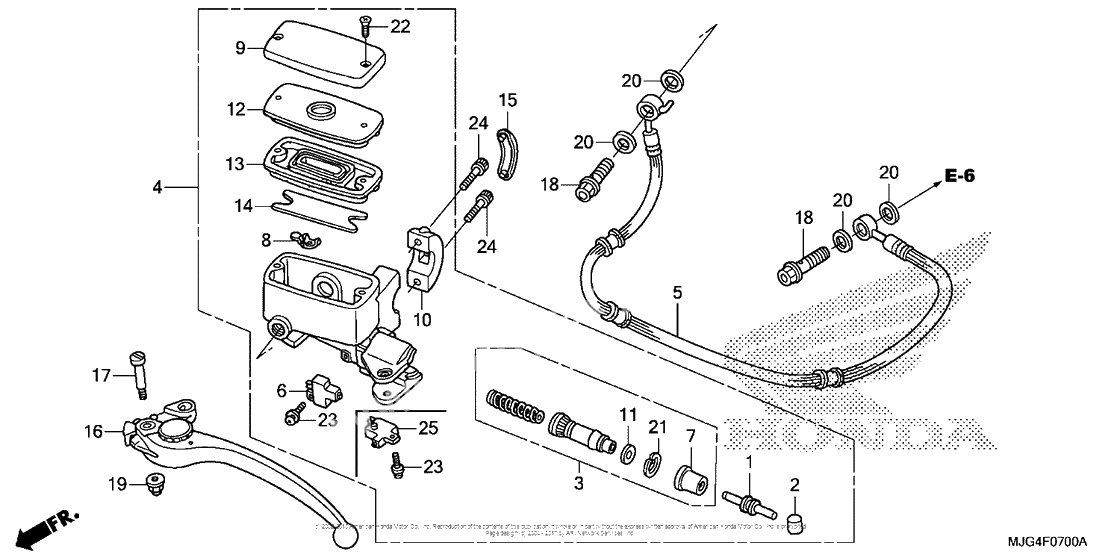

Главный цилиндр сцепления
Главный цилиндр сцепления
Штанга (Ref #1)
1
Part #22884-MB0-006
Втулка (Ref #2)
2
Part #22885-MB0-006
Piston set, master (Ref #3)
3
Part #22886-MCA-006
M/cyl sub-assy (Ref #4)
4
Part #22890-MCA-305
Hose, clutch (Ref #5)
5
Part #22900-MCA-000
Switch assy., clutch (Ref #6)
6
Part #35330-MB0-003
Ботинок (Ref #7)
7
Part #45504-410-003
PROTECTOR (Ref #8)
8
Part #45512-MA6-006
Cap, master cylinder (Ref #9)
9
Part #45513-MAM-A61
HOLDER (Ref #10)
10
Part #45517-MAM-A62
Plate, stopper (Ref #11)
11
Part #45518-MB0-006
Пластина (Ref #12)
12
Part #45518-MM5-006
DIAPHRAGM (Ref #13)
13
Part #45520-MM5-006
Float, fr. (Ref #14)
14
Part #45523-MN5-006
CAP (Ref #15)
15
Part #45553-MAM-A60
Lever, l. handle (Ref #16)
16
Part #53180-MCA-305
Bolt, handlebar (Ref #17)
17
Part #90114-MG9-951
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Nut, cap, 6mm (Ref #19)
19
Part #90202-ZV0-000
Шайба (Ref #20)
20
Part #90545-300-000
Circlip (18mm) (Ref #21)
21
Part #90651-377-003
Болт (Ref #22)
22
Part #93600-040120G
Screw-washer (Ref #23)
23
Part #93893-040-120-7
Bolt, socket (6x20) (Ref #24)
24
Part #96600-0602017
Switch assy (Ref #25)
25
Part #35335-MG9-951
