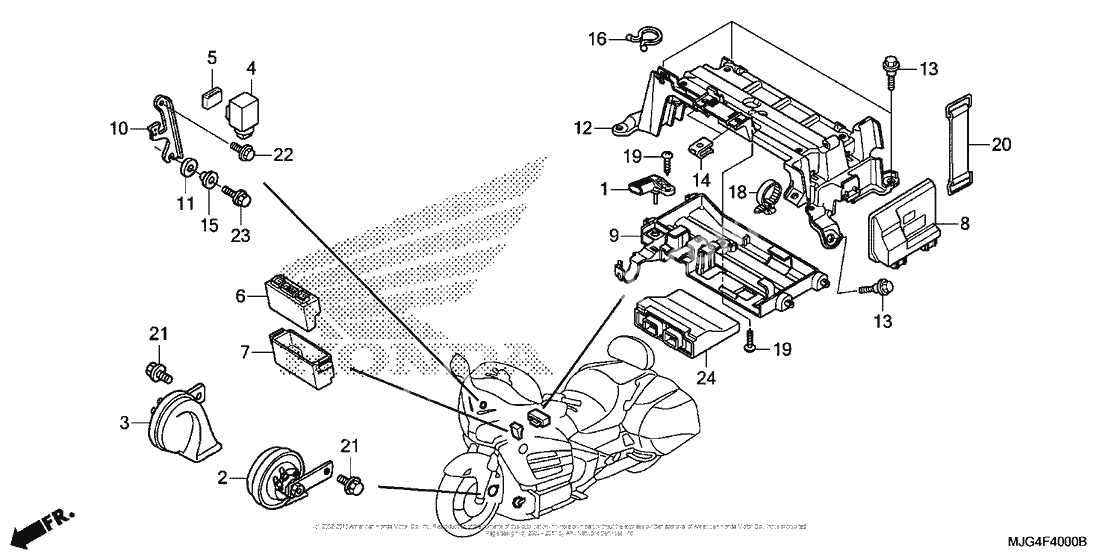

Control unit
Control unit
Sensor assy., map (Ref #1)
1
Part #37830-MEL-003
Звуковой сигнал (Ref #2)
2
Part #38110-MCA-003
Звуковой сигнал (Ref #3)
3
Part #38120-MCA-003
Relay, turn signal (Ref #4)
4
Part #38301-KTF-671
Suspension, winker relay (mitsuba) (Ref #5)
5
Part #38306-KK4-000
Pgm-fi unit (Ref #8)
8
Part #38770-MJG-A41
Tray (Ref #9)
9
Part #38775-MCA-S40
Plate, stay (upper) (Ref #10)
10
Part #64513-MCA-A60
Rubber, seat hinge (Ref #11)
11
Part #77218-GB2-720
Stay, shelter case (Ref #12)
12
Part #83120-MCA-S40
Bolt, fr. fender fixing (Ref #13)
13
Part #90106-MM9-000
Гайка,6MM (Ref #14)
14
Part #90344-GM9-000
Шайба (Ref #15)
15
Part #90512-MBY-000
Clip, purse lock (Ref #16)
16
Part #90630-751-000
Ременная лента кабель (Ref #18)
18
Part #90672-SA0-003
Болт (Ref #19)
19
Part #93903-25480
Band b2, battery (Ref #20)
20
Part #9501213001
BOLT (Ref #21)
21
Part #95701-080-160-8
BOLT (Ref #22)
22
Part #96001-060-120-0
BOLT (Ref #23)
23
Part #96001-060-160-0
Контроллер (Ref #24)
24
Part #36700-MCA-S41
