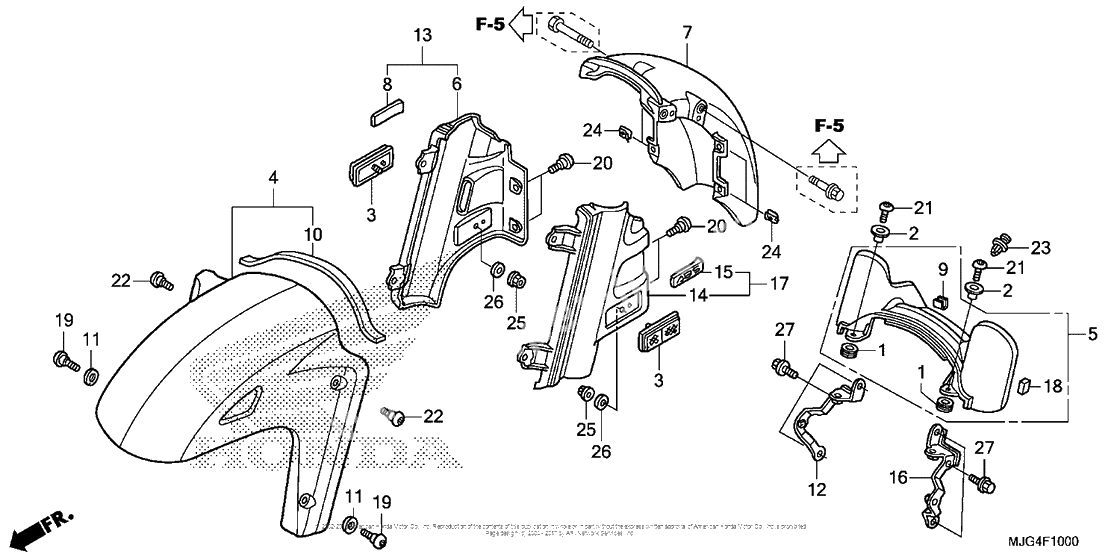

Переднее крыло
Переднее крыло
Rubber, protector packing (Ref #1)
1
Part #18293-GN2-000
COLLAR (Ref #2)
2
Part #33731-MJ0-940
Reflector, reflex (Ref #3)
3
Part #33741-MCA-601
New Genuine Part (Ref #4)
4
Part #61000-MCA-S40ZM
Cvr, fr. *nha86m* (Ref #5)
5
Part #61100-MCA-S40ZB
Cvr, r. fr. *nha86m* (Ref #6)
6
Part #61102-MCA-S40ZB
FENDER B *NH389M* (Ref #7)
7
Part #61103-MCA-000YV
Rubber, cover (Ref #9)
9
Part #61106-MCA-S40
Seal, fr. fender (Ref #10)
10
Part #61107-MCA-S40
Washer, rubber (Ref #11)
11
Part #61108-MCA-000
ДЕТАЛЬ (Ref #12)
12
Part #61109-MCA-000
Cvr, l. fr. *nha86m* (Ref #14)
14
Part #61112-MCA-S40ZB
Stay, l. fr. fender (Ref #16)
16
Part #61119-MCA-000
Rubber, taillight (Ref #18)
18
Part #80103-MFE-670
Screw (6x19) (Ref #19)
19
Part #90104-MN4-000
Шайба (Ref #20)
20
Part #90106-MBY-000
Screw, pan (5x15) (Ref #21)
21
Part #90113-MCJ-000
Screw, pan (6x14) (Ref #22)
22
Part #90113-MM5-000
Clip, mudguard (Ref #23)
23
Part #90653-HC4-900
Nut, clip (5mm) (Ref #24)
24
Part #90677-KAN-961
Гайка (Ref #25)
25
Part #94050-05080
Шайба (Ref #26)
26
Part #94101-05800
BOLT (Ref #27)
27
Part #96001-060-120-0
