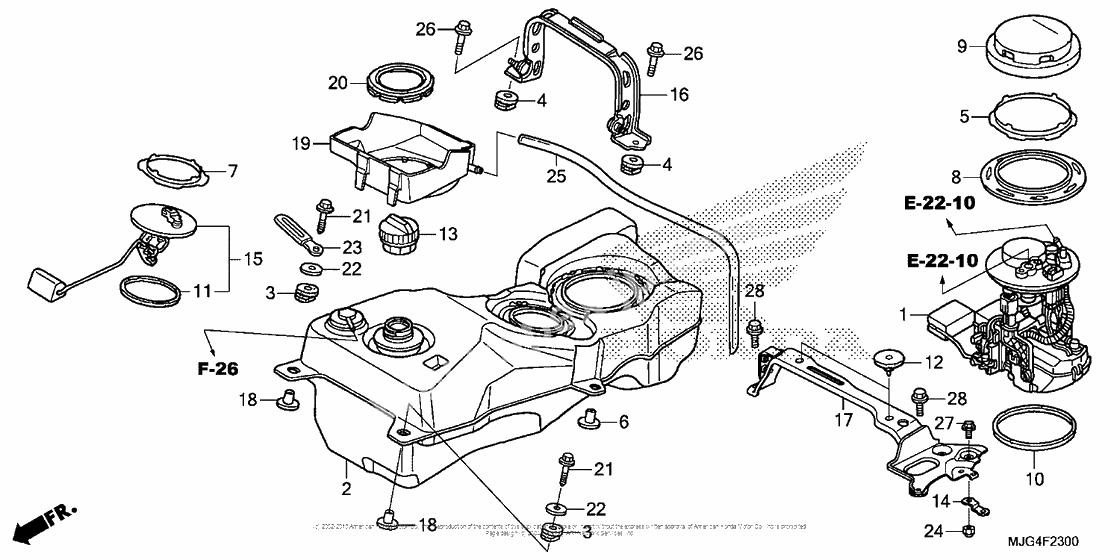

Топливный бак
Топливный бак
Pump assy., fuel (Ref #1)
1
Part #16700-MCA-013
Tank, fuel (Ref #2)
2
Part #17510-MCA-S42
RUBBER (Ref #3)
3
Part #17515-GBB-000
RUBBER (Ref #4)
4
Part #17515-MCA-A80
Locking ring (Ref #5)
5
Part #17515-MCA-S41
Collar (12.7x14.1) (Ref #6)
6
Part #17516-MCA-A80
Locking ring (Ref #7)
7
Part #17516-MCA-S41
Ring, spacer (Ref #8)
8
Part #17517-MCA-S40
Cover, fuel pump (Ref #9)
9
Part #17519-MCA-000
Gasket, fuel pump (Ref #10)
10
Part #17574-MCA-S41
Gasket, fuel unit (Ref #11)
11
Part #17575-MCA-S41
Cushion, rr (Ref #12)
12
Part #17615-MCA-000
Cap assy., fuel tank (Ref #13)
13
Part #17620-MEH-003
Stay, clip (Ref #14)
14
Part #32160-MGE-D01
Fuel unit set (Ref #15)
15
Part #37080-MCA-000
STAY (Ref #16)
16
Part #50250-MCA-S40
STAY (Ref #17)
17
Part #50330-MJG-670
Collar, rr. fender (Ref #18)
18
Part #80108-KF9-900
Tray, fuel filler (Ref #19)
19
Part #83502-MCA-A80
Gasket, fuel tray (Ref #20)
20
Part #83503-MCA-A00
Bolt (6x34) (Ref #21)
21
Part #90104-MCA-000
Washer, tank setting (Ref #22)
22
Part #90136-428-870
Clip, 2x60 (Ref #23)
23
Part #91410-679-000
Гайка (Ref #24)
24
Part #9402106020
Bulk hose (8x8000) (Ref #25)
25
Part #95005-800-0810M
BOLT (Ref #26)
26
Part #95701-080-350-0
Болт (Ref #27)
27
Part #96001-0600800
Bolt, flange, 6x16 (Ref #28)
28
Part #96001-0601607
