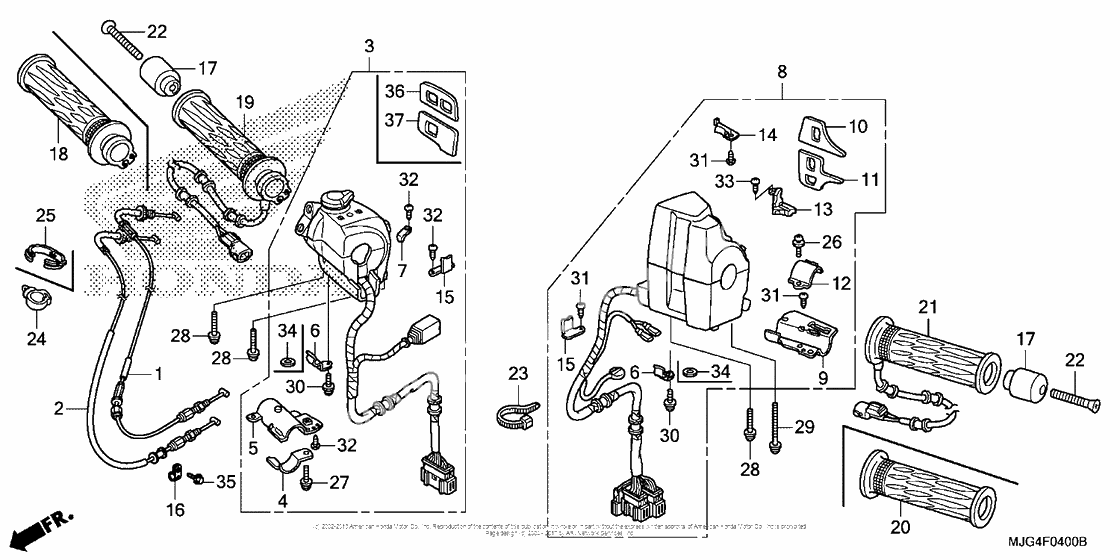

Пульт управления рулевой
Пульт управления рулевой
ТРОС (Ref #1)
1
Part #17910-MCA-A60
Cable b, throttle (Ref #2)
2
Part #17920-MCA-A60
SWITCH ASSY. (Ref #3)
3
Part #35130-MJG-A11
Plate a (Ref #4)
4
Part #35132-MCA-003
Plate b (Ref #5)
5
Part #35133-MCA-003
Clamp, wire (Ref #7)
7
Part #35146-MCA-A20
SWITCH ASSY. (Ref #8)
8
Part #35200-MJG-A11
Plate a set (Ref #9)
9
Part #35202-MCA-003
Plate, ornament (Ref #10)
10
Part #35205-MCA-S40
Plate, ornament (Ref #11)
11
Part #35206-MCA-A20
Plate b set (Ref #12)
12
Part #35207-MCA-003
Линза (Ref #13)
13
Part #35215-MCA-A20
Clamp, wire (Ref #14)
14
Part #35217-MCA-S40
Clamp, wire (Ref #15)
15
Part #35218-MCA-A20
CLAMP (Ref #16)
16
Part #50153-MCA-A60
Weight, handlebar (Ref #17)
17
Part #53105-MK4-620
Grip, r. (Ref #18)
18
Part #53145-MJG-305
Grip, l. handle (Ref #20)
20
Part #53166-MJG-305
Screw, oval (6x65) (Ref #22)
22
Part #90191-KBG-000
BAND (Ref #23)
23
Part #90650-KV6-003
CLAMP (Ref #24)
24
Part #90652-HC4-003
Screw-washer (Ref #26)
26
Part #93892-050-100-8
КРЕПЛЕНИЕ (Ref #27)
27
Part #93892-050-200-8
Screw-washer (5x25) (Ref #28)
28
Part #93892-0502507
Screw-washer (5x45) (Ref #29)
29
Part #93892-0504507
Screw-washer (4x8) (Ref #30)
30
Part #93893-0400807
Болт (Ref #31)
31
Part #93901-32120
Болт (Ref #32)
32
Part #93901-32220
Болт (Ref #33)
33
Part #93901-32320
BOLT (Ref #35)
35
Part #96001-060-160-0
Plate, ornament (Ref #36)
36
Part #35134-MCA-A20
Plate, ornament (Ref #37)
37
Part #35135-MJG-A10
