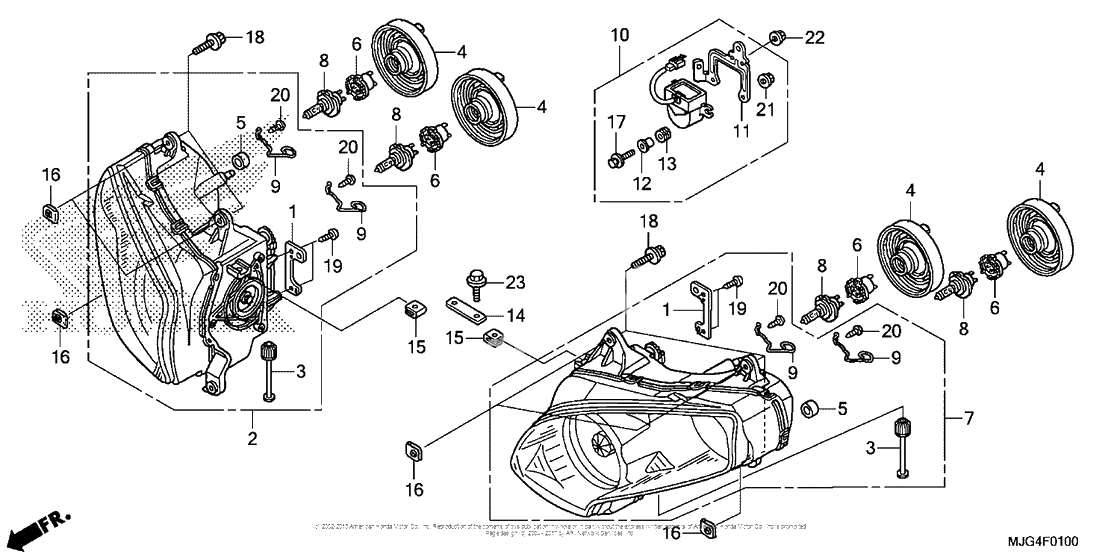

Фара
Фара
PLATE (Ref #1)
1
Part #33101-MCA-A61
Headlight unit, r. (Ref #2)
2
Part #33102-MJG-305
Screw, beam adjust (Ref #3)
3
Part #33103-MCA-003
Cover, rubber (Ref #4)
4
Part #33112-KPB-003
Pipe, cp (Ref #5)
5
Part #33113-MBW-D21
Socket, headlight (Ref #6)
6
Part #33130-MAT-611
Headlight unit, l. (Ref #7)
7
Part #33152-MJG-305
Bulb (12v 55w) (h7) (Ref #8)
8
Part #34901-MAT-611
Spring, supporter (Ref #9)
9
Part #34904-MCA-A61
Sensor, bank angle (Ref #10)
10
Part #35160-MCA-S42
PLATE (Ref #11)
11
Part #35162-MCA-A61
COLLAR (Ref #12)
12
Part #35162-MN5-003
GROMMET (Ref #13)
13
Part #35163-MN5-003
Plate, headlight (Ref #14)
14
Part #64516-MCA-000
Гайка (Ref #15)
15
Part #90301-SM4-901
Гайка (Ref #16)
16
Part #90305-SM4-000
Bolt-washer (4x25) (Ref #17)
17
Part #93401-040-250-8
Bolt-washer (Ref #18)
18
Part #93404-060-250-8
Болт (Ref #19)
19
Part #93901-34320
Болт (Ref #20)
20
Part #93903-34210
Nut, flange, 4mm (Ref #21)
21
Part #9405004000
Гайка (Ref #22)
22
Part #94050-05080
BOLT (Ref #23)
23
Part #96001-060-180-0
