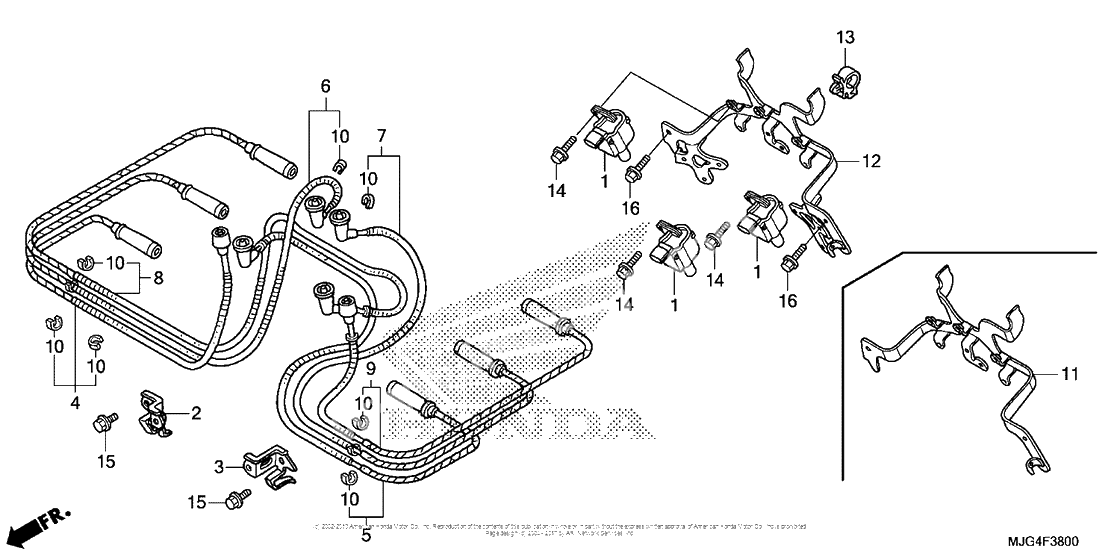

Ignition coil
Ignition coil
Coil, ignition (Ref #1)
1
Part #30510-MCA-S42
Clamp, r. cable (Ref #2)
2
Part #30511-MCA-000
Clamp, l. cable (Ref #3)
3
Part #30512-MCA-000
Cap, ignition (1) (Ref #4)
4
Part #30731-MCA-A81
ПРОВОД ВЫСОКОВОЛЬТНЫЙ (Ref #5)
5
Part #30732-MCA-003
Cap, ignition (3) (Ref #6)
6
Part #30733-MCA-003
Cap, ignition (4) (Ref #7)
7
Part #30734-MCA-003
ПРОВОД СВЕЧИ ЗАЖИГАНИЯ (Ref #8)
8
Part #30735-MCA-003
Cap, ignition (6) (Ref #9)
9
Part #30736-MCA-A81
Clamp a (Ref #10)
10
Part #32765-MCA-000
Stay, ignition coil (Ref #11)
11
Part #50305-MCA-S40
CLIP (Ref #13)
13
Part #53781-SE0-952
BOLT (Ref #14)
14
Part #95701-060-160-8
Bolt, flange, 6x10 (Ref #15)
15
Part #96001-060-100-0
BOLT (Ref #16)
16
Part #96001-060-160-0
