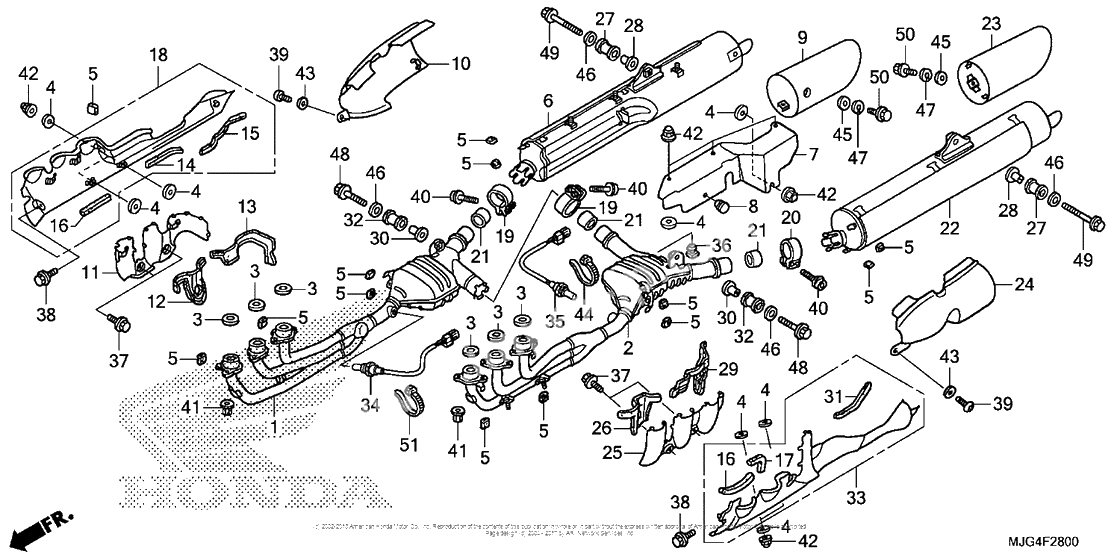

Выхлопная система
Выхлопная система
Pipe, r. ex. (Ref #1)
1
Part #18150-MJG-A10
Pipe, l. ex. (Ref #2)
2
Part #18250-MJG-A10
Gasket, ex. pipe (Ref #3)
3
Part #18291-MN5-650
Gasket, protector (Ref #4)
4
Part #18293-MCA-780
RUBBER (Ref #5)
5
Part #18293-MCA-A20
Muffler, r. (Ref #6)
6
Part #18305-MJG-305
Plate, muffler (Ref #7)
7
Part #18313-MCA-A20
GROMMET (Ref #8)
8
Part #18314-MCA-A20
Tailpiece, r. (Ref #9)
9
Part #18316-MJG-306
Protector, r. rr. (Ref #10)
10
Part #18317-MJK-G40
Protector, r. fr. (Ref #11)
11
Part #18318-MJG-A10
Rubber a, r. (Ref #12)
12
Part #18321-MCA-000
Rubber b, r. (Ref #13)
13
Part #18323-MCA-000
Rubber c (Ref #14)
14
Part #18329-MCA-A20
Резина защитная (Ref #15)
15
Part #18332-MCA-A20
Protector, heat (Ref #16)
16
Part #18333-MCA-000
Sub-protector, heat (Ref #17)
17
Part #18338-MCA-000
Protector *nha86m* (Ref #18)
18
Part #18355-MCA-A20ZB
Band, r. muffler (Ref #19)
19
Part #18376-MT3-000
Band, l. muffler (Ref #20)
20
Part #18377-MT3-000
Gskt, muffler (43mm) (Ref #21)
21
Part #18392-MCA-S40
Muffler, l. (Ref #22)
22
Part #18405-MJG-305
Tailpiece, l. (Ref #23)
23
Part #18416-MJG-306
Protector, l. rr. (Ref #24)
24
Part #18417-MJK-G40
Protector, l. fr. (Ref #25)
25
Part #18418-MJG-A10
Rubber a, l. (Ref #26)
26
Part #18421-MCA-000
RUBBER (Ref #27)
27
Part #18421-MN5-000
COLLAR (Ref #28)
28
Part #18422-MN5-000
Rubber b, l. (Ref #29)
29
Part #18423-MCA-000
COLLAR (Ref #30)
30
Part #18424-MN5-000
Rubber e (Ref #31)
31
Part #18429-MCA-A20
Rubber, ex. pipe (Ref #32)
32
Part #18441-MCA-A20
Protector *nha86m* (Ref #33)
33
Part #18455-MCA-A20ZB
Датчик (Ref #34)
34
Part #36531-MCA-R31
Датчик (Ref #35)
35
Part #36532-MCA-R31
Rub,stand stpr. (Ref #36)
36
Part #50524-MG9-000
Болт (Ref #37)
37
Part #90004-GHB-600
Болт (Ref #38)
38
Part #90011-HN0-A00
Bolt, special (6x12) (Ref #39)
39
Part #90112-MCA-000
Bolt (8x35) (Ref #40)
40
Part #90130-MCA-000
Nut, special (6mm) (Ref #41)
41
Part #90304-HB3-771
Nut, cap (6mm) (Ref #42)
42
Part #90308-MT8-000
Washer, 6.5x18 (Ref #43)
43
Part #90545-323-700
BAND (Ref #44)
44
Part #90650-KV6-003
Шайба (Ref #45)
45
Part #94101-06800
Washer, plain, 8mm (Ref #46)
46
Part #9410308000
Шайба (Ref #47)
47
Part #94111-06000
BOLT (Ref #48)
48
Part #95701-080-450-0
Болт (Ref #49)
49
Part #95701-0805502
BOLT (Ref #50)
50
Part #96001-060-120-7
Band, wire (black) (Ref #51)
51
Part #90652-KT1-771
-
-
