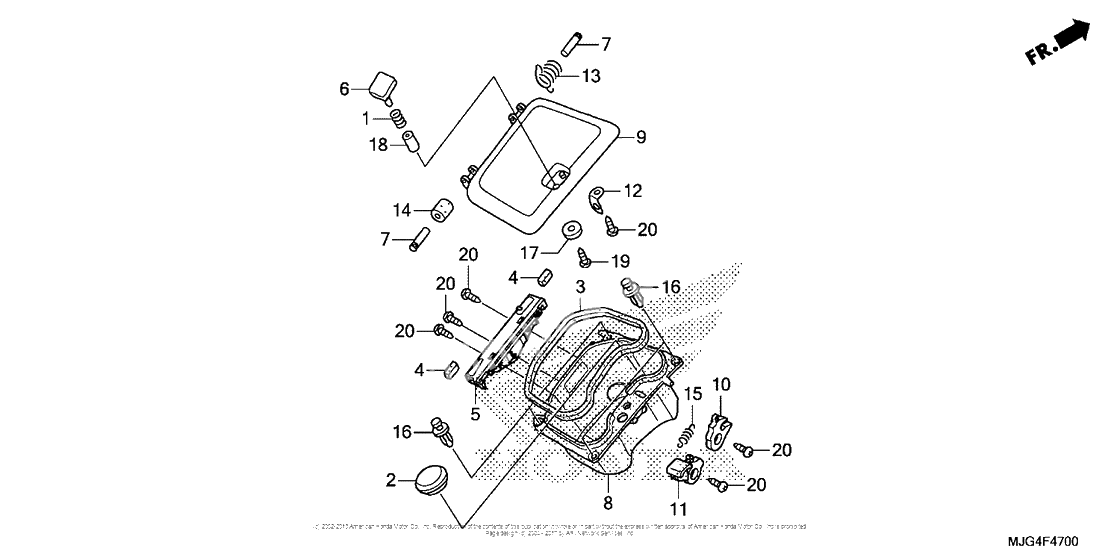

Spring, coil (Ref #1)
1
Part #38253-898-000
GROMMET (Ref #2)
2
Part #38564-SA5-000
Seal, pocket (Ref #3)
3
Part #64228-MCA-A60
Seal, pocket arm (Ref #4)
4
Part #64229-MCA-A60
Hinge, l. *nh1* (Ref #5)
5
Part #64412-MCA-S40ZA
Button, l. (Ref #6)
6
Part #64414-MCA-S40
Pin, pocket (Ref #7)
7
Part #64419-MCA-A60
Pocket, l. fr. (Ref #8)
8
Part #64420-MCA-S40
Cvr, l. pocket *nh1* (Ref #9)
9
Part #64425-MCA-S40ZA
Болт переднего нижнего рычага задний (Ref #10)
10
Part #64428-MCA-000
Cam b (Ref #11)
11
Part #64429-MCA-000
Plate, pocket lock (Ref #12)
12
Part #64431-MCA-000
Spring b, fr. pocket (Ref #13)
13
Part #64434-MCA-A60
Damper, pocket (Ref #14)
14
Part #64435-MCA-A60
Пружина (Ref #15)
15
Part #64436-MCA-000
КЛИПСА КРЕПЛЕНИЯ РАМКИ ЗАДН. НОМЕРА (Ref #16)
16
Part #90116-SP0-003
Шайба (Ref #17)
17
Part #90502-MCA-S40
Collar a (Ref #18)
18
Part #91551-883-T00
Болт (Ref #19)
19
Part #93903-22380
Screw, tap (4x10) (Ref #20)
20
Part #90114-MJK-N20
