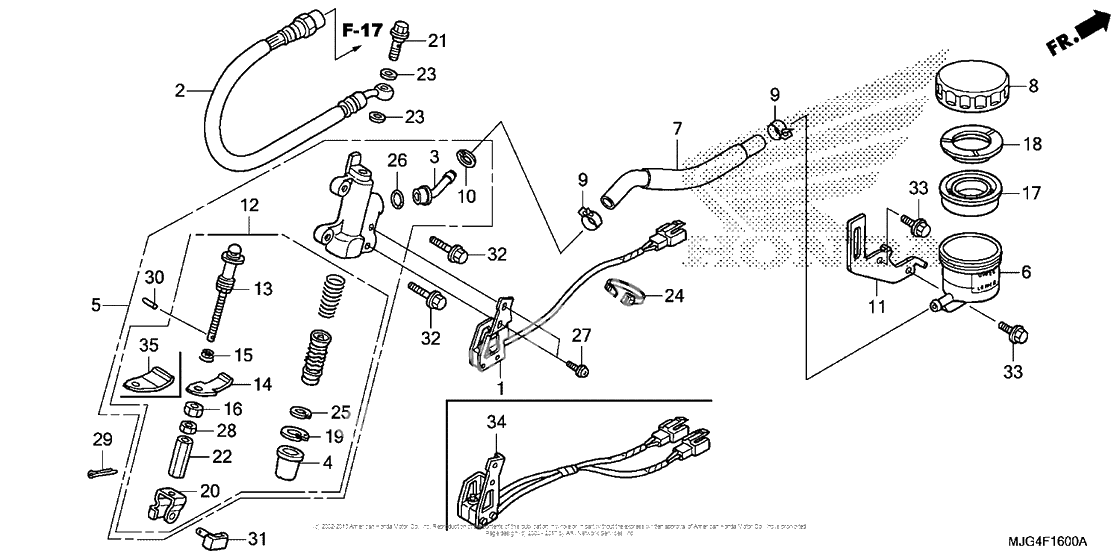

Задний тормозной цилиндр
Задний тормозной цилиндр
Main hose a, rr. (Ref #2)
2
Part #43310-MCA-003
Коннектор (Ref #3)
3
Part #43503-KCY-671
Ботинок (Ref #4)
4
Part #43504-MB2-006
M/cyl sub-assy, rr. (Ref #5)
5
Part #43510-MCA-305
Стакан (Ref #6)
6
Part #43511-MCA-006
Hose, rr. (Ref #7)
7
Part #43512-MCA-006
Cap, oil cup (Ref #8)
8
Part #43513-MY1-006
CLAMP (Ref #9)
9
Part #43514-KS6-701
Circlip, rr. (Ref #10)
10
Part #43517-KS6-701
STAY (Ref #11)
11
Part #43518-MCA-000
Piston set, rr. mast (Ref #12)
12
Part #43520-MCA-016
Штанга (Ref #13)
13
Part #43530-MCA-006
Spring, switch (Ref #15)
15
Part #43538-MCA-006
Nut, switch plate (Ref #16)
16
Part #43539-MN5-006
DIAPHRAGM (Ref #17)
17
Part #45520-300-000
Пластина (Ref #18)
18
Part #45521-MJ6-006
Circlip (Ref #19)
19
Part #46182-MEL-D21
Joint, brake rod (Ref #20)
20
Part #46504-MT4-006
Bolt, oil (10x22) (Ref #21)
21
Part #90145-MS9-612
Nut, special (8mm) (Ref #22)
22
Part #90315-MCA-006
Шайба (Ref #23)
23
Part #90545-300-000
BAND (Ref #24)
24
Part #90650-KV6-003
Стопорное кольцо поршня (Ref #25)
25
Part #90651-MBG-006
Прокладка (Ref #26)
26
Part #91212-422-006
Screw-washer (Ref #27)
27
Part #93893-040-120-7
Гайка (Ref #28)
28
Part #94002-080-000-S
PIN (Ref #29)
29
Part #94201-20150
PIN (Ref #30)
30
Part #94305-20102
Pin d, joint (Ref #31)
31
Part #9501554000
BOLT (Ref #32)
32
Part #95701-060-220-8
BOLT (Ref #33)
33
Part #96001-060-140-0
Switch set, rr. (Ref #34)
34
Part #35300-MCA-A61
Плата переключателя (Ref #35)
35
Part #43537-MCA-006
