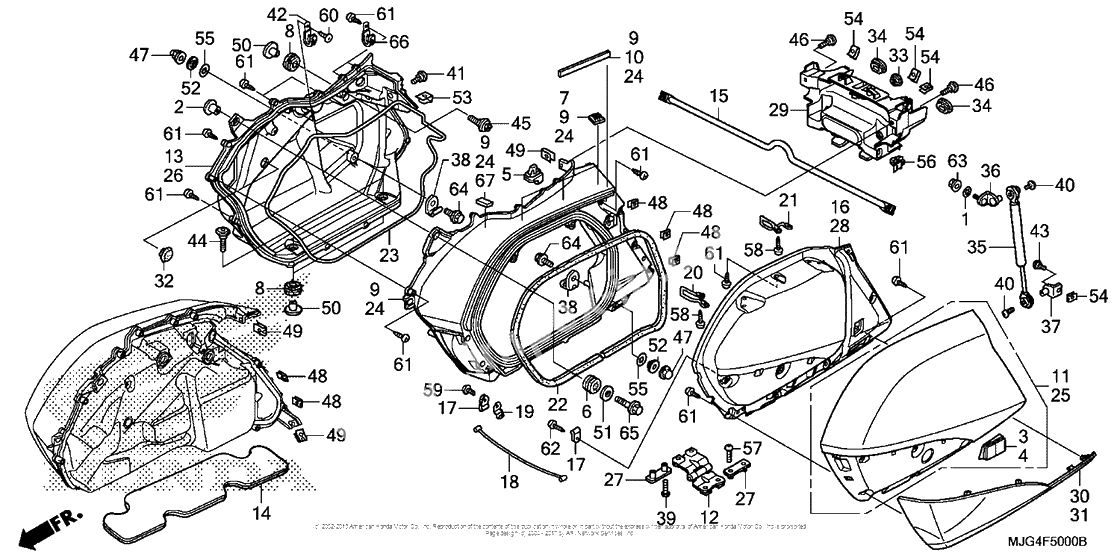

Saddlebag
Saddlebag
Прокладка (Ref #1)
1
Part #15142-PE0-000
COLLAR (Ref #2)
2
Part #19052-KA3-710
New Genuine Part (Ref #3)
3
Part #33740-MJG-670ZF
New Genuine Part (Ref #4)
4
Part #33745-MJG-670ZF
CLIP (Ref #5)
5
Part #39115-TK6-003
RUBBER (Ref #6)
6
Part #61320-KZ9-000
Fastener b (20x20) (Ref #7)
7
Part #64243-MEW-920
RUBBER (Ref #8)
8
Part #80201-MCA-000
New Genuine Part (Ref #9)
9
Part #81210-MJG-671ZE
Mat, saddlebag body (Ref #10)
10
Part #81212-MJG-670
New Genuine Part (Ref #11)
11
Part #81220-MJG-670ZE
Hinge, saddlebag (Ref #12)
12
Part #81230-MCA-S40
Panel, r. saddlebag (Ref #13)
13
Part #81231-MCA-S40
Guard (Ref #14)
14
Part #81232-MCA-A40
Pipe, cross (Ref #15)
15
Part #81233-MJG-670
Inner lid, r. (Ref #16)
16
Part #81241-MCA-S40
Stay b, lid stopper (Ref #17)
17
Part #81254-MN5-000
Cable (Ref #18)
18
Part #81259-MCA-S40
Guide, stopper cable (Ref #19)
19
Part #81292-MCA-000
Rod a (Ref #20)
20
Part #81321-MCA-780
Rod b (Ref #21)
21
Part #81322-MCA-780
Rub, saddlebag seal (Ref #22)
22
Part #81350-MCA-S40
Rub, back panel seal (Ref #23)
23
Part #81351-MCA-S40
New Genuine Part (Ref #24)
24
Part #81410-MJG-671ZE
New Genuine Part (Ref #25)
25
Part #81420-MJG-670ZE
Panel, l. saddlebag (Ref #26)
26
Part #81431-MCA-S40
Шайба (Ref #27)
27
Part #81438-MN5-000
Inner lid, l. (Ref #28)
28
Part #81441-MCA-S40
Cowl, rr. (Ref #29)
29
Part #81501-MJG-670
Cover, r (Ref #30)
30
Part #82213-MCA-S40
Cover, l (Ref #31)
31
Part #82513-MCA-S40
GROMMET (Ref #32)
32
Part #82871-671-000
Grommet, side cover (Ref #33)
33
Part #83551-376-000
Уплотнение (Ref #34)
34
Part #83551-MA6-000
Damper, opener (Ref #35)
35
Part #83590-MCA-013
Plate (upper) (Ref #36)
36
Part #83591-MCA-000
Plate (lower) (Ref #37)
37
Part #83592-MCA-000
Stay, tool setting (Ref #38)
38
Part #89106-MN5-000
Bolt, torx (5x16) (Ref #39)
39
Part #90101-MCA-S40
Screw (5x12) (Ref #40)
40
Part #90112-MJK-N20
Screw (6x14) (Ref #41)
41
Part #90118-MJK-N20
Clip, tube (Ref #42)
42
Part #90106-KJ6-740
Шайба (Ref #43)
43
Part #90106-MBY-000
Screw, special (6mm) (Ref #44)
44
Part #90109-MCA-000
Screw, special (6mm) (Ref #45)
45
Part #90119-MCA-000
Bolt, special (6x8) (Ref #46)
46
Part #90116-MEW-920
Nut, cap, 6mm (Ref #47)
47
Part #90201-428-900
Nut, clip (5mm) (Ref #48)
48
Part #90312-MT3-000
Nut, spring, 6mm (Ref #49)
49
Part #90320-MM5-000
COLLAR (Ref #50)
50
Part #90501-MCA-000
Шайба (Ref #51)
51
Part #90506-430-000
Шайба (Ref #52)
52
Part #90512-KF9-900
U-clip (Ref #53)
53
Part #90651-MFL-670
Nut, clip (5mm) (Ref #54)
54
Part #90677-KAN-961
Прокладка (Ref #55)
55
Part #91352-GAZ-930
CLIP (Ref #56)
56
Part #91565-SEL-003
Болт (Ref #57)
57
Part #93500-050-160-G
Болт (Ref #58)
58
Part #93901-25380
Screw, tap (4x10) (Ref #59)
59
Part #90114-MJK-N20
Болт (Ref #60)
60
Part #93903-25180
Screw, tap (5x12) (Ref #61)
61
Part #90121-MJK-N20
Screw, tap (5x16) (Ref #62)
62
Part #90113-MJK-N20
Гайка (Ref #63)
63
Part #94050-05000
BOLT, FLANGE (6X12) (Ref #64)
64
Part #90013-GHB-610
Болт (Ref #65)
65
Part #96001-0603000
Clamp, tube (Ref #66)
66
Part #17215-MG9-950
Rubber, protector (Ref #67)
67
Part #64121-MBG-000
