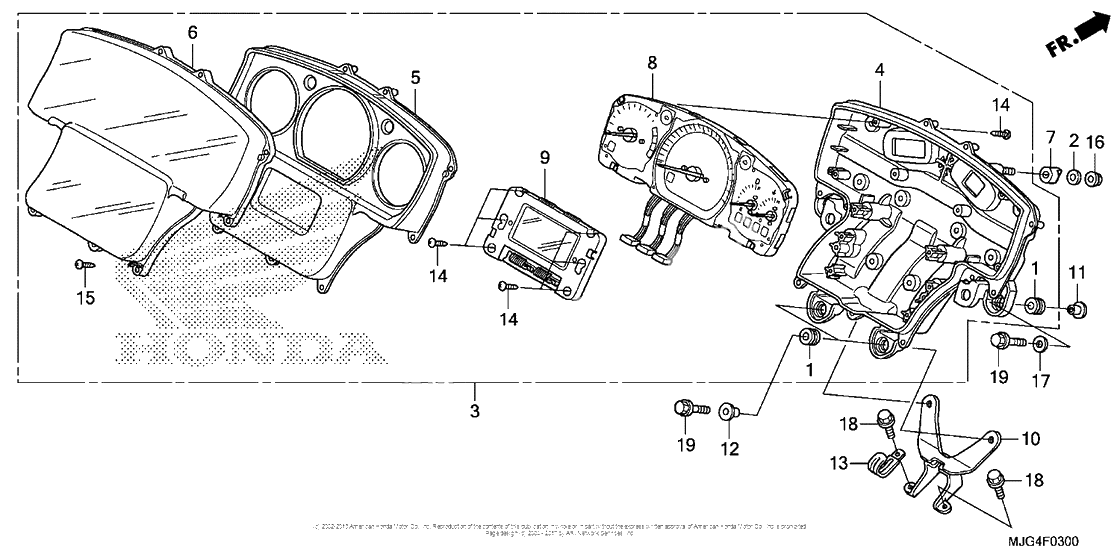

Спидометр
Спидометр
Grommet, air cleaner case (Ref #1)
1
Part #17251-KE8-690
Washer, pivot (Ref #2)
2
Part #17936-921-000
Meter, combination (Ref #3)
3
Part #37100-MJG-306
Case assy. (lower) (Ref #4)
4
Part #37101-MCA-B41
Plate, reflecting (Ref #5)
5
Part #37102-MCA-H01
Линза (Ref #6)
6
Part #37103-MCA-A61
RUBBER (Ref #7)
7
Part #37109-MBG-000
Meter, combination (Ref #8)
8
Part #37110-MJG-306
Lcd (Ref #9)
9
Part #37230-MJG-305
Stay, meter mounting (Ref #10)
10
Part #53133-MCA-A61
Collar, fuel tank (Ref #11)
11
Part #90509-750-000
COLLAR (Ref #12)
12
Part #90522-KF0-000
Clip, wire (Ref #13)
13
Part #91406-166-000
Болт (Ref #14)
14
Part #93903-22420
Болт (Ref #15)
15
Part #93903-24420
Гайка (Ref #16)
16
Part #94050-06080
Шайба (Ref #17)
17
Part #94103-06000
BOLT (Ref #18)
18
Part #96001-060-100-7
BOLT (Ref #19)
19
Part #96001-060-200-0
