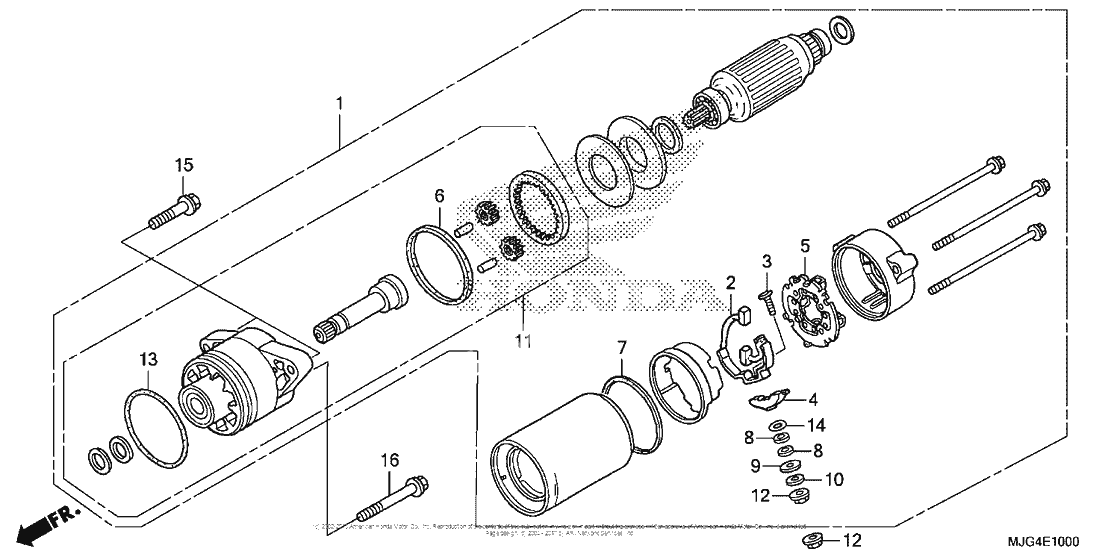

Стартер электрический
Стартер электрический
Starter motor assy. (Ref #1)
1
Part #31200-MJG-671
Brush set, terminal (Ref #2)
2
Part #31201-MT8-008
Болт конечный (Ref #3)
3
Part #31204-MN5-008
Insulator, terminal (Ref #4)
4
Part #31206-MN5-008
Holder set, brush (Ref #5)
5
Part #31206-MR6-008
Ring, seal (Ref #6)
6
Part #31207-179-711
RING (Ref #7)
7
Part #31207-KS5-901
Washer, insulator (Ref #8)
8
Part #31207-MN5-008
Washer, insulator (Ref #9)
9
Part #31208-MN5-008
Шайба (Ref #10)
10
Part #31209-MN5-008
Gear assy. (Ref #11)
11
Part #31210-MEC-A00
Nut-washer, 6mm (Ref #12)
12
Part #90071-MB0-000
Прокладка (Ref #13)
13
Part #91309-MN5-008
Прокладка (Ref #14)
14
Part #91320-MB0-000
Bolt, flange, 8x38 (Ref #15)
15
Part #95701-0803800
Bolt, flange, 8x60 (Ref #16)
16
Part #95701-0806000
