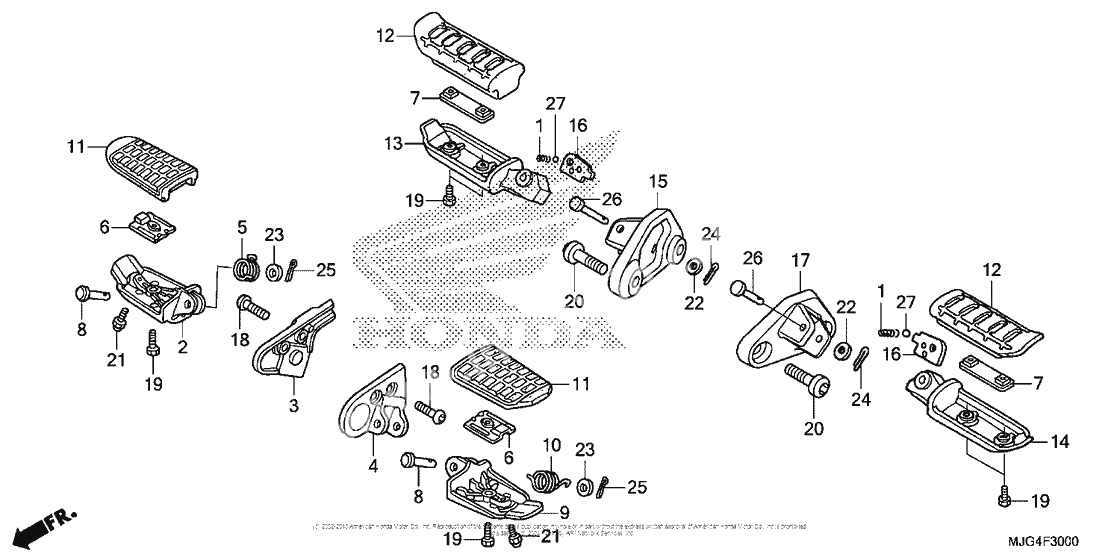

Подножки
Подножки
Пружина (Ref #1)
1
Part #28333-300-000
Arm, r. step (Ref #2)
2
Part #50612-MCA-305
Bracket, r. *nha86m* (Ref #3)
3
Part #50613-MCA-S40ZC
Bracket, l. *nha86m* (Ref #4)
4
Part #50614-MCA-S40ZC
Spring, r (Ref #5)
5
Part #50617-MM5-000
Plate, step setting (Ref #6)
6
Part #50619-MCA-000
Plate, step setting (Ref #7)
7
Part #50619-MT3-000
ШТИФТ ПОДНОЖКИ (Ref #8)
8
Part #50639-ML0-010
Arm, l. step (Ref #9)
9
Part #50642-MCA-305
Spring, l (Ref #10)
10
Part #50644-MM5-000
НАКЛАДКА ПОДНОЖКИ (Ref #11)
11
Part #50661-MCA-305
Rubber, step (Ref #12)
12
Part #50661-MT3-305
Bar, r. pillion step (Ref #13)
13
Part #50711-MT3-305
Bar, l. pillion step (Ref #14)
14
Part #50712-MT3-305
Holder, r. *nha86m* (Ref #15)
15
Part #50715-MJG-670ZB
PLATE (Ref #16)
16
Part #50718-MT3-000
Holder, l. *nha86m* (Ref #17)
17
Part #50815-MJG-670ZB
Bolt, socket (8x22) (Ref #18)
18
Part #90100-GCT-J50
BOLT (Ref #19)
19
Part #90115-MT3-000
Bolt, socket (8x32) (Ref #20)
20
Part #90155-MBL-610
CBOLT,CAP,6X12 (Ref #21)
21
Part #92501-06012-0A
Шайба (Ref #22)
22
Part #94101-06800
Шайба (Ref #23)
23
Part #94101-08000
PIN (Ref #24)
24
Part #94201-16120
PIN (Ref #25)
25
Part #94201-20150
Pin c (Ref #26)
26
Part #9501583000
Ball (Ref #27)
27
Part #96211-08000
