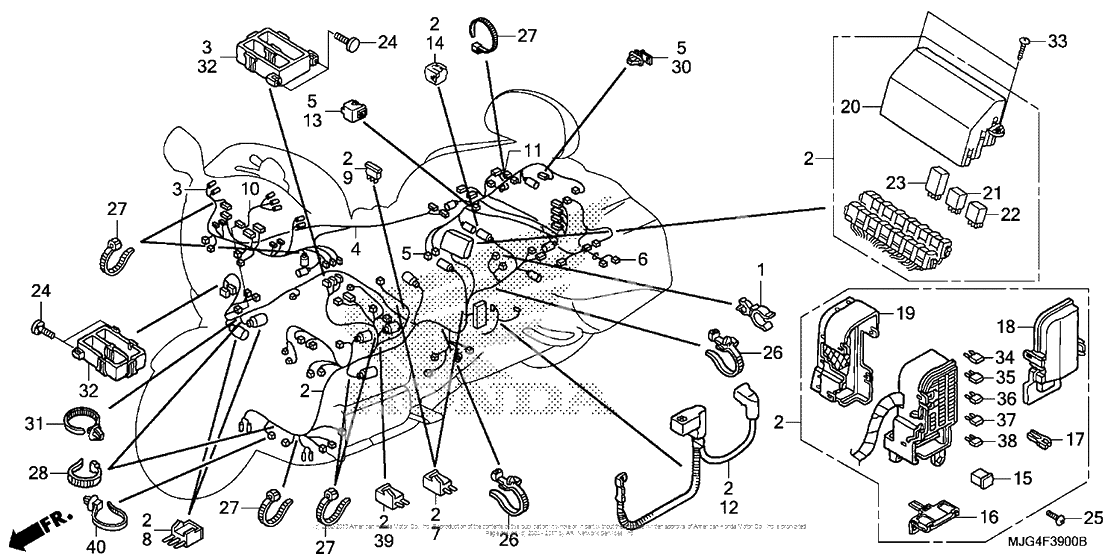

Электрооборудование
Электрооборудование
Clip, breather tube (Ref #1)
1
Part #11338-KJ9-751
Wire harness (Ref #2)
2
Part #32100-MJG-A10
Sub-harness, fairing (Ref #3)
3
Part #32105-MJG-A10
Sub-harness, audio (Ref #4)
4
Part #32119-MJG-670
Sub-harness, rr. (Ref #5)
5
Part #32120-MJG-670
Sub-harness, l. (Ref #6)
6
Part #32130-MJG-670
Коннектор (Ref #7)
7
Part #32146-S84-003
Диод (Ref #8)
8
Part #32146-SJ4-003
Sub-harness, r. (Ref #11)
11
Part #32180-MCA-S40
Cable (Ref #12)
12
Part #32401-MCA-S40
CAP (Ref #13)
13
Part #32605-GEV-761
Cap, dummy (4p) (Ref #14)
14
Part #32606-GEV-761
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #15)
15
Part #38211-SNA-A11
Предохранитель (Ref #16)
16
Part #38231-SFE-J01
Съёмник мини предохранитель (Ref #17)
17
Part #38235-S04-003
Cover (upper) (Ref #18)
18
Part #38252-MCA-A61
Cover (lower) (Ref #19)
19
Part #38256-MCA-A61
Cover (upper) (Ref #20)
20
Part #38282-MCA-003
Relay (micro iso 4p) (Ref #21)
21
Part #38501-MCA-A61
Relay (micro iso 5p) (Ref #22)
22
Part #38502-MCA-A61
Relay (micro iso 4p) (Ref #23)
23
Part #38503-MCA-A61
Bolt, welding (5x16) (Ref #24)
24
Part #90101-TF6-003
Screw (5x12) (Ref #25)
25
Part #90114-KFK-000
BAND (Ref #26)
26
Part #90649-SC2-003
Band, wire, 165mm (black) (Ref #27)
27
Part #90651-KV6-003
Band, wire (black) (Ref #28)
28
Part #90652-KT1-771
CLIP (Ref #30)
30
Part #91535-TA0-003
CLIP (Ref #31)
31
Part #91541-S0A-003
Держатель соединения (Ref #32)
32
Part #91571-SR3-003
Screw, tap (5x16) (Ref #33)
33
Part #90113-MJK-N20
Fuse, mini (5a) (Ref #34)
34
Part #9820040500
Fuse (Ref #35)
35
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #36)
36
Part #98200-41500
Fuse (Ref #37)
37
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #38)
38
Part #98200-43000
CLIP (Ref #40)
40
Part #91540-TA0-003
