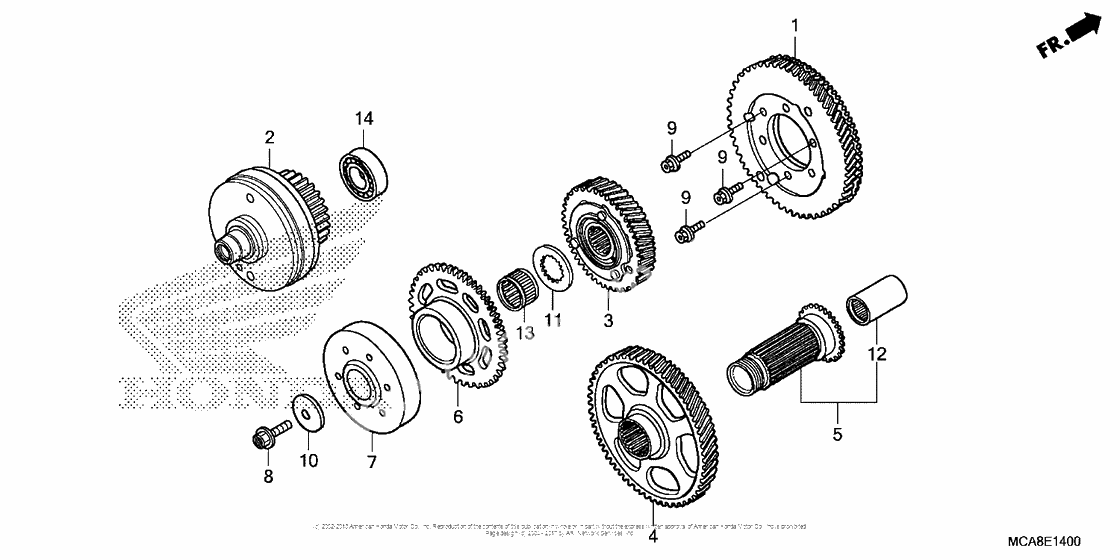

Primary drive gear
Primary drive gear
Gear (74t) (Ref #1)
1
Part #13320-MCA-A60
Gear assy,acg dri (Ref #2)
2
Part #13430-MCA-A61
Шестерня (Ref #3)
3
Part #23110-MN5-010
Gear (78t) (Ref #4)
4
Part #23121-MCA-000
Главный механизм (Ref #5)
5
Part #23130-MCA-000
Gear (46t) (Ref #6)
6
Part #28110-MCA-000
Clutch outer (Ref #7)
7
Part #28125-MN5-014
Bolt, ubs (12x30) (Ref #8)
8
Part #90005-MCA-000
Болт (Ref #9)
9
Part #90108-KV3-000
Шайба (Ref #10)
10
Part #90402-MCA-A01
Шайба (Ref #11)
11
Part #90493-MN5-000
Bearing (28x35x60) (Ref #12)
12
Part #91024-MN5-003
Bearing (36x41x18.3) (Ref #13)
13
Part #91027-MCA-003
Bearing (6004r) (Ref #14)
14
Part #96140-6004000
