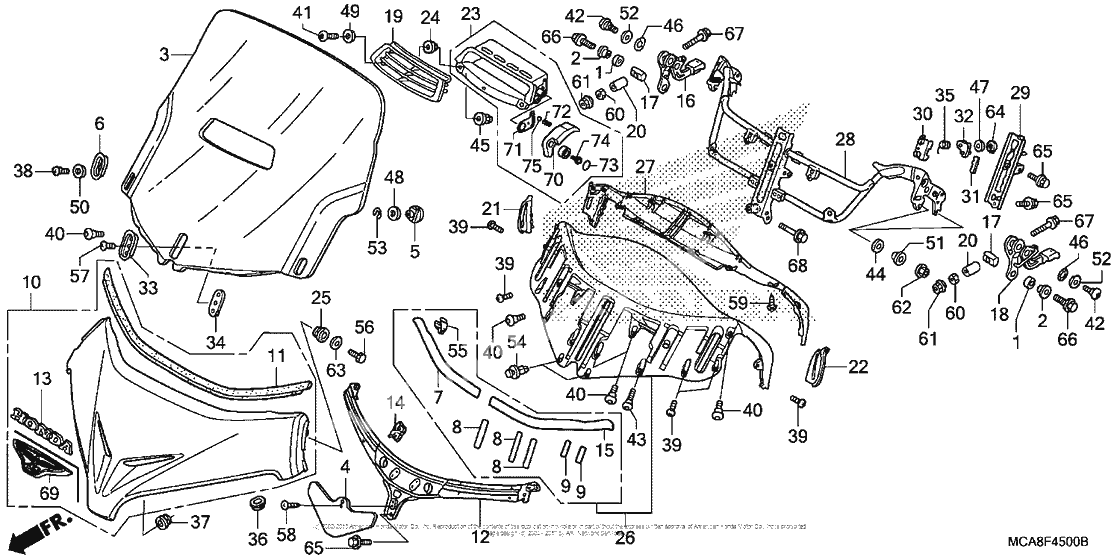

Windscreen
Windscreen
COLLAR (Ref #1)
1
Part #50605-GZ4-670
Collar, fr. fender (Ref #2)
2
Part #61105-KM7-910
WINDSCREEN (Ref #3)
3
Part #64100-MCA-305
Cover, garnish (Ref #4)
4
Part #64113-MCA-S40
Гайка (Ref #5)
5
Part #64114-MCA-000
PLATE (Ref #6)
6
Part #64116-MN5-000
Tape a, r. slide (Ref #7)
7
Part #64117-MCA-300
Tape b, slide (Ref #8)
8
Part #64118-MCA-300
Tape c, slide (Ref #9)
9
Part #64119-MCA-300
GARNISH SET *NHB38M* (Ref #10)
10
Part #64120-MCA-S40ZQ
Garnish set *r342c* (Ref #10)
10
Part #64120-MCA-S40ZJ
GARNISH (TYPE1) (Ref #10)
10
Part #64100-MJK-W00ZA
УПЛОТНИТЕЛЬ СТЕКЛА ЛОБОВОГО (Ref #11)
11
Part #64121-MCA-000
Holder, windscreen (Ref #12)
12
Part #64122-MCA-000
Эмблема (Ref #13)
13
Part #64125-MCA-A40
АВТОДЕТАЛЬ (Ref #14)
14
Part #64127-MCA-010
Tape a, l. slide (Ref #15)
15
Part #64128-MCA-300
Link, r. adjust (Ref #16)
16
Part #64133-MCA-A60
Bracket, tension (Ref #17)
17
Part #64137-MCA-000
Link, l. adjusting (Ref #18)
18
Part #64143-MCA-A60
Grille, center fresh (Ref #19)
19
Part #64150-MCA-A21
COLLAR. ADJUSTING LEVER (Ref #20)
20
Part #64152-MCA-000
РЕЗИНКА УПЛОТНИТЕЛЬНАЯ (Ref #21)
21
Part #64153-MCA-A60
РЕЗИНКА (Ref #22)
22
Part #64163-MCA-A60
Visor, fresh air (Ref #23)
23
Part #64170-MCA-S42
GROMMET (Ref #24)
24
Part #64205-MCA-A21
RUBBER (Ref #25)
25
Part #64246-MJ4-670
Visor a *nh105* (Ref #26)
26
Part #64255-MCA-S40ZA
Visor b *nh1* (Ref #27)
27
Part #64265-MCA-A60ZA
Stay b, cowl (upper) (Ref #28)
28
Part #64511-MCA-A60
Holder, adjuster (Ref #29)
29
Part #64541-MCA-A60
Body, adjuster (Ref #30)
30
Part #64542-MCA-010
Cam b, adjuster (Ref #31)
31
Part #64543-MCA-000
Cam a, adjuster (Ref #32)
32
Part #64544-MCA-000
Holder a, screen (Ref #33)
33
Part #64547-MCA-000
Holder b, screen (Ref #34)
34
Part #64548-MCA-000
Spring, holder (Ref #35)
35
Part #64549-MCA-000
Grommet, a/clnr hsg (Ref #36)
36
Part #83551-GE2-000
Уплотнение (Ref #37)
37
Part #83601-MN5-000
Screw, mudguard (Ref #38)
38
Part #90103-HC4-770
Screw (5x12) (Ref #39)
39
Part #90112-MJK-N20
Screw, pan (6x11) (Ref #40)
40
Part #90106-KY2-701
Screw, pan (5x15.5) (Ref #41)
41
Part #90109-MBL-610
Screw, pan (6x11) (Ref #42)
42
Part #90118-MCA-000
Screw, pan (6x14) (Ref #43)
43
Part #90138-MCA-000
Шайба (Ref #44)
44
Part #90148-SA0-000
Гайка (Ref #45)
45
Part #90167-SA0-980
Шайба (Ref #46)
46
Part #90435-422-000
Washer, 10.1mm (Ref #47)
47
Part #90443-ZG3-000
Шайба (Ref #48)
48
Part #90476-703-000
Washer, thrust (5mm) (Ref #49)
49
Part #90504-MCA-H50
Washer, nylon, 8mm (Ref #50)
50
Part #90507-921-000
Шайба (Ref #51)
51
Part #90512-300-000
Washer, thrust, 8.6x13x0.6 (Ref #52)
52
Part #90589-VD6-901
E-ring, 8mm (Ref #53)
53
Part #90601-473-003
CLIP (Ref #54)
54
Part #90657-SB0-003
CLIP (Ref #55)
55
Part #90666-S84-A01
Bolt, recessed (6x8) (Ref #56)
56
Part #92301-06008-0A
Болт (Ref #57)
57
Part #93500-060-080-H
Screw, pan, 6x8 (Ref #57)
57
Part #93500-060080A
Болт (Ref #58)
58
Part #93903-24020
Screw, tap (4x12) (Ref #59)
59
Part #90120-MJK-N20
Гайка (Ref #60)
60
Part #94002-060-000-S
Гайка (Ref #61)
61
Part #94050-06000
Гайка (Ref #62)
62
Part #94050-06080
Шайба (Ref #63)
63
Part #94103-06000
Circlip (Ref #64)
64
Part #94510-10000
BOLT (Ref #65)
65
Part #96001-060-120-0
BOLT (Ref #66)
66
Part #96001-060-160-0
BOLT (Ref #67)
67
Part #96001-060-400-0
Болт (Ref #68)
68
Part #96001-0604500
Lever (Ref #70)
70
Part #64157-MCA-A20
Plate, lever click (Ref #71)
71
Part #64167-MCA-A21
Spring, lever click (Ref #72)
72
Part #64167-MT8-770
Накладка моторчика (Ref #73)
73
Part #64168-MT8-770
Screw, special, 5x12 (Ref #74)
74
Part #90105-MB1-000
Ball (#6) (3/16) (Ref #75)
75
Part #91101-MAM-A80
