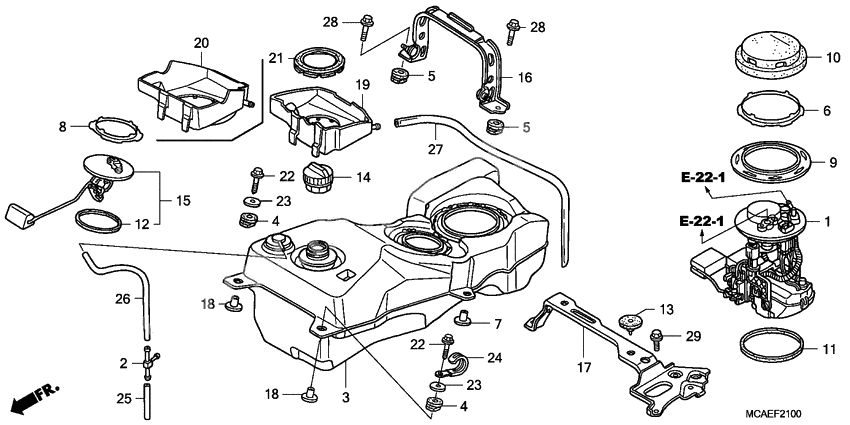

Tank fuel
Tank fuel
Pump assy., fuel (Ref #1)
1
Part #16700-MCA-013
Pipe, three way joint (Ref #2)
2
Part #16960-ME9-000
Tank, fuel (Ref #3)
3
Part #17510-MCA-010
RUBBER (Ref #4)
4
Part #17515-GBB-000
RUBBER (Ref #4)
4
Part #17515-GBB-000
RUBBER (Ref #4)
4
Part #17515-GBB-000
RUBBER (Ref #4)
4
Part #17515-GBB-000
RUBBER (Ref #5)
5
Part #17515-MCA-A80
RUBBER (Ref #5)
5
Part #17515-MCA-A80
RUBBER (Ref #5)
5
Part #17515-MCA-A80
RUBBER (Ref #5)
5
Part #17515-MCA-A80
Locking ring (Ref #6)
6
Part #17515-MCA-003
Collar (12.7x14.1) (Ref #7)
7
Part #17516-MCA-A80
Locking ring (Ref #8)
8
Part #17516-MCA-003
Ring, spacer (Ref #9)
9
Part #17517-MCA-000
Cover, fuel pump (Ref #10)
10
Part #17519-MCA-000
Gasket, base (Ref #11)
11
Part #17574-MCA-003
Gasket, fuel unit (Ref #12)
12
Part #17575-MCA-003
Cushion, rr (Ref #13)
13
Part #17615-MCA-000
Cap assy., fuel tank (Ref #14)
14
Part #17620-MCA-A01
Fuel unit set (Ref #15)
15
Part #37080-MCA-000
STAY (Ref #17)
17
Part #50330-MCA-A01
Collar, rr. fender (Ref #18)
18
Part #80108-KF9-900
Collar, rr. fender (Ref #18)
18
Part #80108-KF9-900
Collar, rr. fender (Ref #18)
18
Part #80108-KF9-900
Collar, rr. fender (Ref #18)
18
Part #80108-KF9-900
Tray, fuel filler (Ref #20)
20
Part #83502-MCA-A80
Gasket, fuel tray (Ref #21)
21
Part #83503-MCA-A00
Bolt (6x34) (Ref #22)
22
Part #90104-MCA-000
Bolt (6x34) (Ref #22)
22
Part #90104-MCA-000
Bolt (6x34) (Ref #22)
22
Part #90104-MCA-000
Bolt (6x34) (Ref #22)
22
Part #90104-MCA-000
Washer, tank setting (Ref #23)
23
Part #90136-428-870
Washer, tank setting (Ref #23)
23
Part #90136-428-870
Washer, tank setting (Ref #23)
23
Part #90136-428-870
Washer, tank setting (Ref #23)
23
Part #90136-428-870
Clip, 2x60 (Ref #24)
24
Part #91410-679-000
Tube,fuel,5.5x270 (Ref #25)
25
Part #95001-552-704-0
TUBE (Ref #26)
26
Part #95001-558-104-0
TUBE (Ref #27)
27
Part #95005-808-601-0
Bolt, flange, 6x16 (Ref #29)
29
Part #96001-0601607
