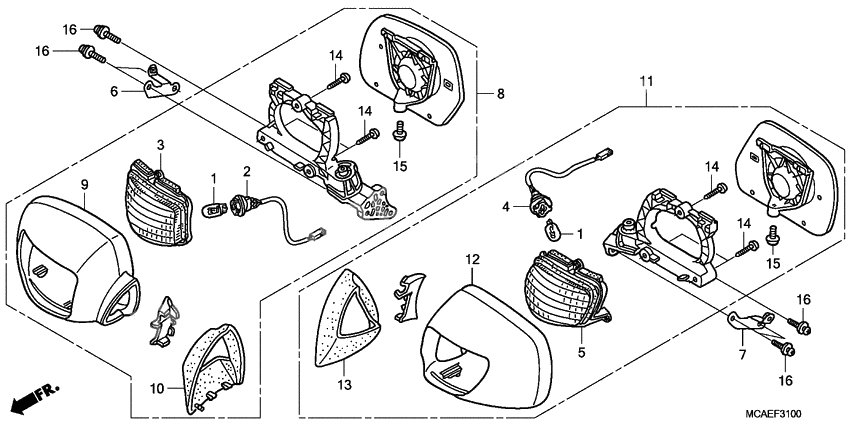

Winker/mirror
Winker/mirror
Bulb (Ref #1)
1
Part #33303-SL4-003
Bulb (Ref #1)
1
Part #33303-SL4-003
Bulb (Ref #1)
1
Part #33303-SL4-003
Bulb (Ref #1)
1
Part #33303-SL4-003
Socket comp. (Ref #2)
2
Part #33405-MCA-D31
Lens comp,r (Ref #3)
3
Part #33410-MCA-602
Socket comp. (Ref #4)
4
Part #33455-MCA-D31
Lens comp,l (Ref #5)
5
Part #33460-MCA-602
Stay, r. visor (Ref #6)
6
Part #64257-MCA-000
Stay, l. visor (Ref #7)
7
Part #64267-MCA-000
Mirror assy (Ref #8)
8
Part #88110-MCA-D30ZN
Mirror assy (Ref #8)
8
Part #88110-MCA-D30ZM
Mirror assy (Ref #8)
8
Part #88110-MCA-D30ZL
Housing, r. *nha54m* (Ref #9)
9
Part #88112-MCA-000YD
Housing, r. *b191m* (Ref #9)
9
Part #88112-MCA-000YB
Housing, r. *r287m* (Ref #9)
9
Part #88112-MCA-000ZE
Boot, r. back mirror (Ref #10)
10
Part #88113-MCA-A00
Mirror assy (Ref #11)
11
Part #88120-MCA-D30ZN
Mirror assy (Ref #11)
11
Part #88120-MCA-D30ZM
Mirror assy (Ref #11)
11
Part #88120-MCA-D30ZL
Housing, l. *nha54m* (Ref #12)
12
Part #88122-MCA-000YD
Housing, l. *b191m* (Ref #12)
12
Part #88122-MCA-000YB
Housing, l. *r287m* (Ref #12)
12
Part #88122-MCA-000ZE
Boot, l. back mirror (Ref #13)
13
Part #88123-MCA-A00
Screw (5x12) (Ref #15)
15
Part #90142-MCA-000
Screw (5x12) (Ref #15)
15
Part #90142-MCA-000
Screw (5x12) (Ref #15)
15
Part #90142-MCA-000
Screw (5x12) (Ref #15)
15
Part #90142-MCA-000
