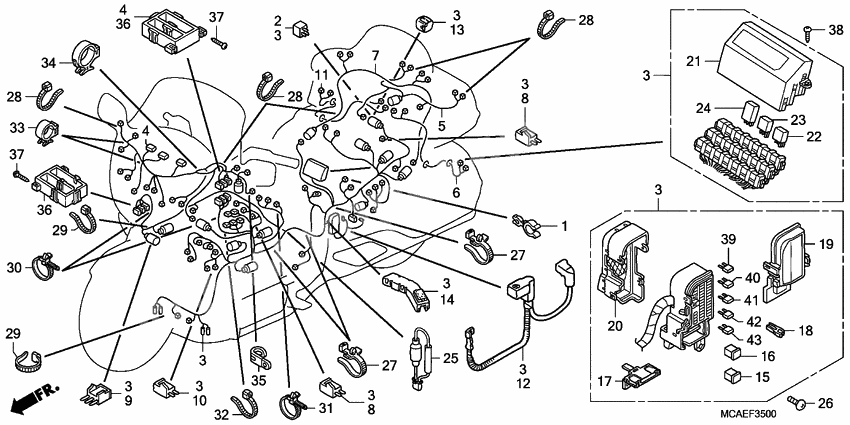

Harness wire
Harness wire
Clip, breather tube (Ref #1)
1
Part #11338-KJ9-751
Rectifier comp., silicon (Ref #2)
2
Part #31700-MM8-610
Sub harness (Ref #4)
4
Part #32105-MCA-710
Sub harness (Ref #4)
4
Part #32105-MCA-710
Sub harness (Ref #4)
4
Part #32105-MCA-710
Sub harness (Ref #4)
4
Part #32105-MCA-710
Sub harness (Ref #5)
5
Part #32120-MCA-D50
Sub harness (Ref #6)
6
Part #32130-MCA-D30
Sub harness (Ref #7)
7
Part #32140-MCA-K00
Коннектор (Ref #8)
8
Part #32146-SH3-003
Коннектор (Ref #8)
8
Part #32146-SH3-003
Коннектор (Ref #8)
8
Part #32146-SH3-003
Коннектор (Ref #8)
8
Part #32146-SH3-003
Диод (Ref #9)
9
Part #32146-SJ4-003
Коннектор (Ref #10)
10
Part #32146-S84-003
Sub harness (Ref #11)
11
Part #32180-MCA-D30
Cable (Ref #12)
12
Part #32401-MCA-A60
Cap, dummy (4p) (Ref #13)
13
Part #32606-GEV-761
Protector, harness (Ref #14)
14
Part #32702-MCA-A61
Fuse, block (60a) (Ref #15)
15
Part #38211-MCA-A80
ПРЕДОХРАНИТЕЛЬ 7,5A (Ref #16)
16
Part #38211-SNA-A11
Предохранитель (Ref #17)
17
Part #38231-SFE-J01
Съёмник мини предохранитель (Ref #18)
18
Part #38235-S04-003
Cover (upper) (Ref #19)
19
Part #38252-MCA-A60
Cover (lower) (Ref #20)
20
Part #38256-MCA-A60
Cover (upper) (Ref #21)
21
Part #38281-MCA-A61
Relay (micro iso 4p) (Ref #22)
22
Part #38501-MCA-A61
Relay (micro iso 5p) (Ref #23)
23
Part #38502-MCA-A61
Relay (micro iso 4p) (Ref #24)
24
Part #38503-MCA-A61
Filter, noise (Ref #25)
25
Part #39260-MCA-A01
Screw (5x12) (Ref #26)
26
Part #90114-KFK-000
BAND (Ref #27)
27
Part #90649-SC2-003
BAND (Ref #27)
27
Part #90649-SC2-003
BAND (Ref #27)
27
Part #90649-SC2-003
BAND (Ref #27)
27
Part #90649-SC2-003
Band, wire (black) (Ref #29)
29
Part #90652-KT1-771
Band, wire (black) (Ref #29)
29
Part #90652-KT1-771
Band, wire (black) (Ref #29)
29
Part #90652-KT1-771
Band, wire (black) (Ref #29)
29
Part #90652-KT1-771
Ременная лента кабель (Ref #30)
30
Part #90672-SA0-003
BAND (Ref #32)
32
Part #90679-SG9-E01
Clip, cable, 25mm (Ref #33)
33
Part #90690-GHB-671
Clip, cable (30mm) (Ref #34)
34
Part #90690-GHB-681
CLIP (Ref #35)
35
Part #91411-679-000
Держатель соединения (Ref #36)
36
Part #91571-MCA-P00
Держатель соединения (Ref #36)
36
Part #91571-MCA-P00
Держатель соединения (Ref #36)
36
Part #91571-MCA-P00
Держатель соединения (Ref #36)
36
Part #91571-MCA-P00
Болт (Ref #37)
37
Part #93903-25320
Болт (Ref #37)
37
Part #93903-25320
Болт (Ref #37)
37
Part #93903-25320
Болт (Ref #37)
37
Part #93903-25320
Болт (Ref #38)
38
Part #93903-25380
Fuse, mini (5a) (Ref #39)
39
Part #9820040500
Fuse (Ref #40)
40
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #41)
41
Part #98200-41500
Fuse (Ref #42)
42
Part #98200-42000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #43)
43
Part #98200-43000
