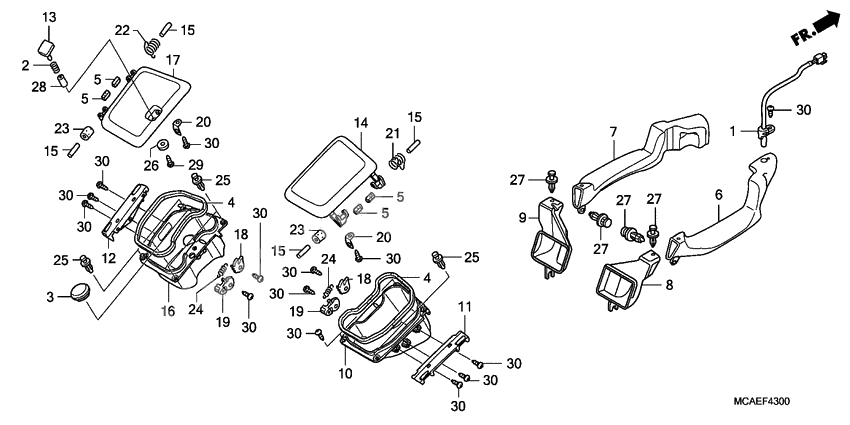

Air duct
Air duct
Датчик (Ref #1)
1
Part #37890-MCA-A60
Spring, coil (Ref #2)
2
Part #38253-898-000
GROMMET (Ref #3)
3
Part #38564-SA5-000
Seal, pocket (Ref #4)
4
Part #64228-MCA-A60
Seal, pocket (Ref #4)
4
Part #64228-MCA-A60
Seal, pocket (Ref #4)
4
Part #64228-MCA-A60
Seal, pocket (Ref #4)
4
Part #64228-MCA-A60
Duct, r. fr. air (Ref #6)
6
Part #64278-MCA-A80
Duct, l. fr. air (Ref #7)
7
Part #64279-MCA-A80
Duct, r. rr. air (Ref #8)
8
Part #64280-MCA-A80
Duct, l. rr. air (Ref #9)
9
Part #64281-MCA-A80
Hinge, l. *nh1* (Ref #12)
12
Part #64412-MCA-A60ZA
Button, l. (Ref #13)
13
Part #64414-MCA-000
Pocket, l. fr. (Ref #16)
16
Part #64420-MCA-A60
Cvr, l. pocket *nh1* (Ref #17)
17
Part #64425-MCA-A60ZB
Болт переднего нижнего рычага задний (Ref #18)
18
Part #64428-MCA-000
Болт переднего нижнего рычага задний (Ref #18)
18
Part #64428-MCA-000
Болт переднего нижнего рычага задний (Ref #18)
18
Part #64428-MCA-000
Болт переднего нижнего рычага задний (Ref #18)
18
Part #64428-MCA-000
Cam b (Ref #19)
19
Part #64429-MCA-000
Cam b (Ref #19)
19
Part #64429-MCA-000
Cam b (Ref #19)
19
Part #64429-MCA-000
Cam b (Ref #19)
19
Part #64429-MCA-000
Plate, pocket lock (Ref #20)
20
Part #64431-MCA-000
Plate, pocket lock (Ref #20)
20
Part #64431-MCA-000
Plate, pocket lock (Ref #20)
20
Part #64431-MCA-000
Plate, pocket lock (Ref #20)
20
Part #64431-MCA-000
Spring b, fr. pocket (Ref #22)
22
Part #64434-MCA-A60
Damper, pocket (Ref #23)
23
Part #64435-MCA-A60
Damper, pocket (Ref #23)
23
Part #64435-MCA-A60
Damper, pocket (Ref #23)
23
Part #64435-MCA-A60
Damper, pocket (Ref #23)
23
Part #64435-MCA-A60
Пружина (Ref #24)
24
Part #64436-MCA-000
Пружина (Ref #24)
24
Part #64436-MCA-000
Пружина (Ref #24)
24
Part #64436-MCA-000
Пружина (Ref #24)
24
Part #64436-MCA-000
Шайба (Ref #26)
26
Part #90502-MCA-000
Collar a (Ref #28)
28
Part #91551-883-T00
Болт (Ref #29)
29
Part #93903-22380
