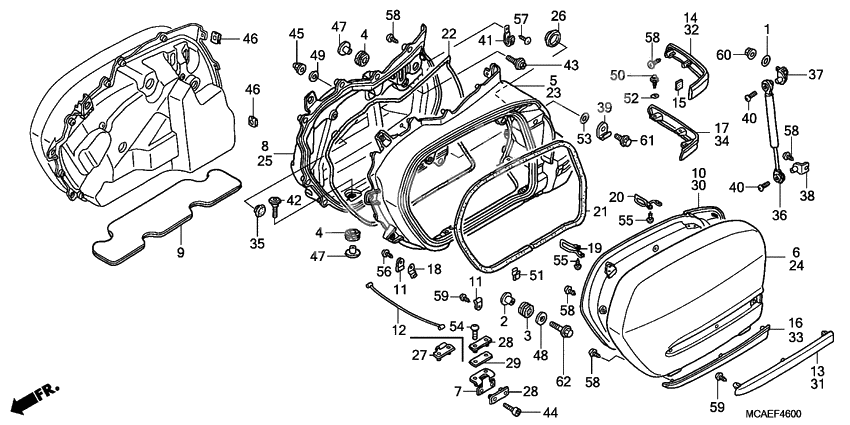

Saddlebag
Saddlebag
Прокладка (Ref #1)
1
Part #15142-PE0-000
COLLAR (Ref #2)
2
Part #19052-KA3-710
RUBBER (Ref #3)
3
Part #61320-KZ9-000
RUBBER (Ref #4)
4
Part #80201-MCA-000
RUBBER (Ref #4)
4
Part #80201-MCA-000
RUBBER (Ref #4)
4
Part #80201-MCA-000
RUBBER (Ref #4)
4
Part #80201-MCA-000
Body, r. *b191m* (Ref #5)
5
Part #81211-MCA-A60ZS
Body, r. *r287m* (Ref #5)
5
Part #81211-MCA-A60ZR
Body, r. *nha54m* (Ref #5)
5
Part #81211-MCA-A60ZQ
Lid, r. *b191m* (Ref #6)
6
Part #81221-MCA-000YG
Lid, r. *nha54m* (Ref #6)
6
Part #81221-MCA-000YF
Lid, r. *r287m* (Ref #6)
6
Part #81221-MCA-000ZM
Hinge, saddlebag (Ref #7)
7
Part #81230-MCA-000
Panel, r. saddlebag (Ref #8)
8
Part #81231-MCA-000
Guard (Ref #9)
9
Part #81232-MCA-A40
Inner lid, r. (Ref #10)
10
Part #81241-MCA-000
Stay b, lid stopper (Ref #11)
11
Part #81254-MN5-000
Stay b, lid stopper (Ref #11)
11
Part #81254-MN5-000
Stay b, lid stopper (Ref #11)
11
Part #81254-MN5-000
Stay b, lid stopper (Ref #11)
11
Part #81254-MN5-000
Cable (Ref #12)
12
Part #81259-MCA-000
Molding, r. *b191m* (Ref #13)
13
Part #81261-MCA-000YG
Molding, r. *nha54m* (Ref #13)
13
Part #81261-MCA-000YF
Molding, r. *r287m* (Ref #13)
13
Part #81261-MCA-000ZM
Molding, r. *nha54m* (Ref #14)
14
Part #81271-MCA-000YF
Mldg, r. rr. *r287m* (Ref #14)
14
Part #81271-MCA-000ZM
Mldg, r. rr. *b191m* (Ref #14)
14
Part #81271-MCA-000YG
Tape (25x25) (Ref #15)
15
Part #81272-MCA-300
Molding, r. *b191m* (Ref #16)
16
Part #81281-MCA-000YG
Molding, r. *nha54m* (Ref #16)
16
Part #81281-MCA-000YF
Molding, r. *r287m* (Ref #16)
16
Part #81281-MCA-000ZM
Mldg, r. rr. *b191m* (Ref #17)
17
Part #81282-MCA-000YG
Molding, r. *nha54m* (Ref #17)
17
Part #81282-MCA-000YF
Mldg, r. rr. *r287m* (Ref #17)
17
Part #81282-MCA-000ZM
Guide, stopper cable (Ref #18)
18
Part #81292-MCA-000
Rod a (Ref #19)
19
Part #81321-MCA-780
Rod b (Ref #20)
20
Part #81322-MCA-780
RUBBER (Ref #21)
21
Part #81350-MCA-000
RUBBER (Ref #22)
22
Part #81351-MCA-000
Body, l. *b191m* (Ref #23)
23
Part #81411-MCA-A60ZS
Body, l. *nha54m* (Ref #23)
23
Part #81411-MCA-A60ZQ
Body, l. *r287m* (Ref #23)
23
Part #81411-MCA-A60ZR
Lid, l. *b191m* (Ref #24)
24
Part #81421-MCA-000YG
Lid, l. *nha54m* (Ref #24)
24
Part #81421-MCA-000YF
Lid, l. *r287m* (Ref #24)
24
Part #81421-MCA-000ZM
Panel, l. saddlebag (Ref #25)
25
Part #81431-MCA-000
Rub, saddlebag light (Ref #26)
26
Part #81433-MCA-A60
Шайба (Ref #27)
27
Part #81438-MCA-000
Шайба (Ref #28)
28
Part #81438-MN5-000
Шайба (Ref #28)
28
Part #81438-MN5-000
Шайба (Ref #28)
28
Part #81438-MN5-000
Шайба (Ref #28)
28
Part #81438-MN5-000
Rubber, hinge seal (Ref #29)
29
Part #81439-MN5-000
Inner lid, l. (Ref #30)
30
Part #81441-MCA-000
Molding, l. *nha54m* (Ref #31)
31
Part #81461-MCA-000YF
Molding, l. *r287m* (Ref #31)
31
Part #81461-MCA-000ZM
Molding, l. *b191m* (Ref #31)
31
Part #81461-MCA-000YG
Mldg, l. rr. *b191m* (Ref #32)
32
Part #81471-MCA-000YG
Molding, l. *nha54m* (Ref #32)
32
Part #81471-MCA-000YF
Mldg, l. rr. *r287m* (Ref #32)
32
Part #81471-MCA-000ZM
Molding, l. *nha54m* (Ref #33)
33
Part #81481-MCA-000YF
Molding, l. *b191m* (Ref #33)
33
Part #81481-MCA-000YG
Molding, l. *r287m* (Ref #33)
33
Part #81481-MCA-000ZM
Mldg, l. rr. *b191m* (Ref #34)
34
Part #81482-MCA-000YG
Molding, l. *nha54m* (Ref #34)
34
Part #81482-MCA-000YF
Mldg, l. rr. *r287m* (Ref #34)
34
Part #81482-MCA-000ZM
GROMMET (Ref #35)
35
Part #82871-671-000
Damper, opener (Ref #36)
36
Part #83590-MCA-013
Plate (upper) (Ref #37)
37
Part #83591-MCA-000
Plate (lower) (Ref #38)
38
Part #83592-MCA-000
Stay, tool setting (Ref #39)
39
Part #89106-MN5-000
Screw, pan (5x12) (Ref #40)
40
Part #90104-964-000
Screw, pan (5x12) (Ref #40)
40
Part #90104-964-000
Screw, pan (5x12) (Ref #40)
40
Part #90104-964-000
Screw, pan (5x12) (Ref #40)
40
Part #90104-964-000
Clip, tube (Ref #41)
41
Part #90106-KJ6-740
Screw, special (6mm) (Ref #42)
42
Part #90109-MCA-000
Screw, special (6mm) (Ref #43)
43
Part #90119-MCA-000
Bolt, torx (5x14) (Ref #44)
44
Part #90131-MY3-781
Nut, cap, 6mm (Ref #45)
45
Part #90201-428-900
Nut, spring, 6mm (Ref #46)
46
Part #90320-MM5-000
Nut, spring, 6mm (Ref #46)
46
Part #90320-MM5-000
Nut, spring, 6mm (Ref #46)
46
Part #90320-MM5-000
Nut, spring, 6mm (Ref #46)
46
Part #90320-MM5-000
COLLAR (Ref #47)
47
Part #90501-MCA-000
COLLAR (Ref #47)
47
Part #90501-MCA-000
COLLAR (Ref #47)
47
Part #90501-MCA-000
COLLAR (Ref #47)
47
Part #90501-MCA-000
Шайба (Ref #48)
48
Part #90506-430-000
Шайба (Ref #49)
49
Part #90512-KF9-900
Clip, molding (Ref #50)
50
Part #90654-MCA-000
Clip, saddlebag (Ref #51)
51
Part #90655-MCA-000
Прокладка (Ref #52)
52
Part #91317-171-003
Прокладка (Ref #53)
53
Part #91352-GAZ-930
Screw, pan (5x14) (Ref #54)
54
Part #93500-050140G
Болт (Ref #55)
55
Part #93901-25380
Болт (Ref #55)
55
Part #93901-25380
Болт (Ref #55)
55
Part #93901-25380
Болт (Ref #55)
55
Part #93901-25380
Болт (Ref #56)
56
Part #93903-24280
Болт (Ref #57)
57
Part #93903-25180
Болт (Ref #59)
59
Part #93903-25380
Болт (Ref #59)
59
Part #93903-25380
Болт (Ref #59)
59
Part #93903-25380
Болт (Ref #59)
59
Part #93903-25380
Гайка (Ref #60)
60
Part #94050-05000
BOLT (Ref #61)
61
Part #96001-060-120-7
Болт (Ref #62)
62
Part #96001-0603000
