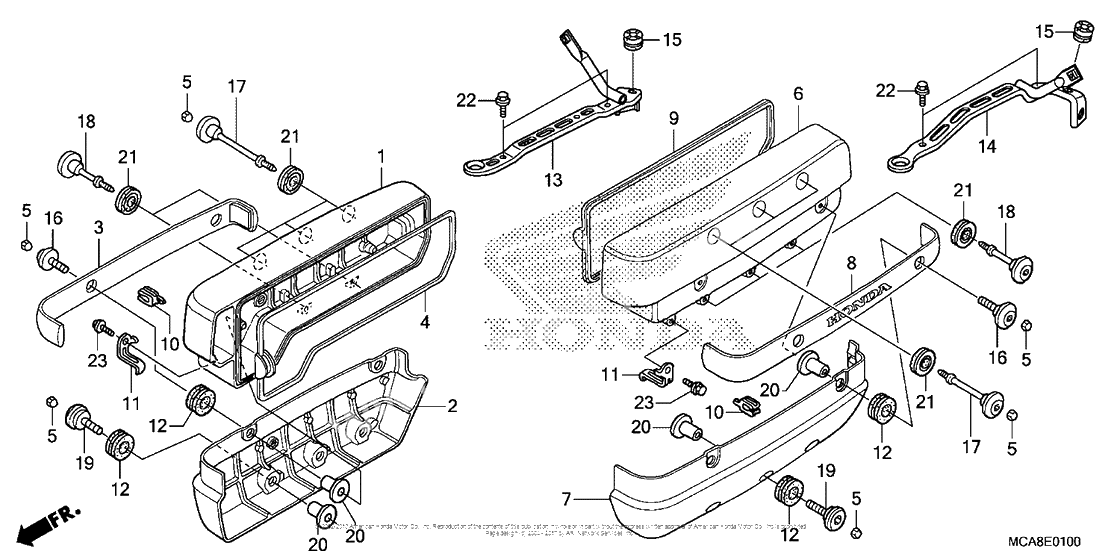

Клапанная крышка
Клапанная крышка
Cover, r. cyl hd (Ref #1)
1
Part #12311-MJG-670
Cover, r. cyl hd (Ref #1)
1
Part #12311-MCA-000
Cvr, r. cyl hd side (Ref #2)
2
Part #12321-MJG-670
Cvr, r. cyl hd side (Ref #2)
2
Part #12321-MCA-000
Emblem, r (Ref #3)
3
Part #12322-MCA-A20
Прокладка, правая (Ref #4)
4
Part #12391-MCA-000
Plug, hex. (6mm) (Ref #5)
5
Part #12392-MJ0-000
Cover, l. cyl hd (Ref #6)
6
Part #12411-MJG-670
Cover, l. cyl hd (Ref #6)
6
Part #12411-MCA-000
Cvr, l. cyl hd side (Ref #7)
7
Part #12421-MCA-000
Cvr, l. cyl hd side (Ref #7)
7
Part #12421-MJG-670
Emblem, l (Ref #8)
8
Part #12422-MCA-A20
Прокладка, левая (Ref #9)
9
Part #12491-MCA-000
Clamp, ignition wire (Ref #10)
10
Part #32114-MCA-000
Guide, ignition wire (Ref #11)
11
Part #32115-MCA-000
Rubber, pivot cover (Ref #12)
12
Part #64386-MS2-000
Stay, r (Ref #13)
13
Part #83516-MCA-S40
Stay, l (Ref #14)
14
Part #83566-MCA-S40
Rubber,brkt cush (Ref #15)
15
Part #84905-118-000
Шайба (Ref #16)
16
Part #90016-MCA-780
Болт (Ref #17)
17
Part #90017-MCA-000
Bolt, head cover (Ref #18)
18
Part #90018-MCA-000
Болт (Ref #19)
19
Part #90019-MCA-780
Collar, under cowl setting (Ref #20)
20
Part #90122-463-770
Rubber, setting (Ref #21)
21
Part #90543-MV9-670
BOLT (Ref #22)
22
Part #95701-060-120-8
Bolt, flange, 6x10 (Ref #23)
23
Part #96001-060-100-0
-
-
Цена: 3 400.00 р.
Доступно: 1
-
