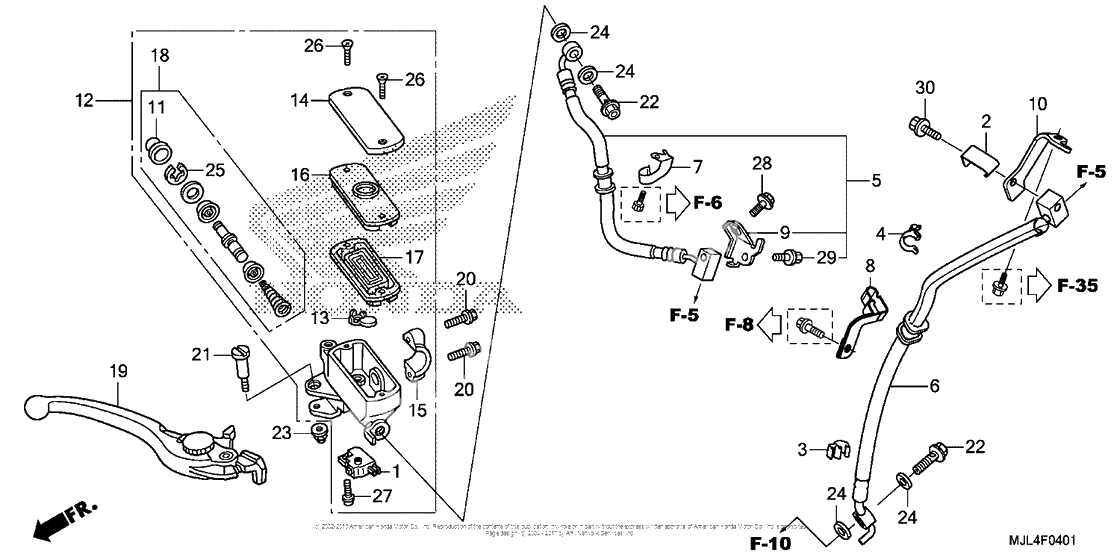

Front brake master cylinder (2)
Front brake master cylinder (2)
Switch, fr. stop (Ref #1)
1
Part #35340-MGS-D31
Clamp, sensor wire (Ref #2)
2
Part #38514-MJF-C10
Clamp (d8,5) (Ref #3)
3
Part #38516-MGE-003
Clamp, abs wire (12) (Ref #4)
4
Part #38517-MGE-003
Hose a, fr. brake (Ref #5)
5
Part #45125-MGS-D81
Hose d, fr. brake (Ref #6)
6
Part #45128-MJL-D81
Clamp a, fr. (Ref #7)
7
Part #45155-MGS-D80
Clamp a, fr. brake hose (Ref #8)
8
Part #45156-MJL-D80
Stay, fr. brake hose (Ref #9)
9
Part #45158-MGS-D80
Stay, fr. brake hose (Ref #10)
10
Part #45160-MJF-C11
Ботинок (Ref #11)
11
Part #45504-410-003
M/cyl sub-assy, fr. (Ref #12)
12
Part #45510-MGS-305
PROTECTOR (Ref #13)
13
Part #45512-MA6-006
Cap, master cylinder (Ref #14)
14
Part #45513-MM5-016
HOLDER (Ref #15)
15
Part #45517-166-006
Пластина (Ref #16)
16
Part #45518-MM5-006
DIAPHRAGM (Ref #17)
17
Part #45520-MM5-006
Cylinder set,mast (Ref #18)
18
Part #45530-KVY-911
Рычаг тормоза (Ref #19)
19
Part #53170-MEJ-016
Болт (Ref #20)
20
Part #90101-MBZ-G00
Bolt, r (Ref #21)
21
Part #90114-MA5-671
Bolt, oil (10x22) (Ref #22)
22
Part #90145-MS9-612
Nut, cap, 6mm (Ref #23)
23
Part #90201-415-000
Шайба (Ref #24)
24
Part #90545-300-000
Circlip (Ref #25)
25
Part #90651-MA5-671
Болт (Ref #26)
26
Part #93600-040120G
Screw-washer (Ref #27)
27
Part #93893-040-120-7
Bolt, flange, 6x14 (Ref #28)
28
Part #95701-0601407
BOLT (Ref #29)
29
Part #96001-060-120-7
Bolt, flange, 6x14 (Ref #30)
30
Part #96001-0601407
