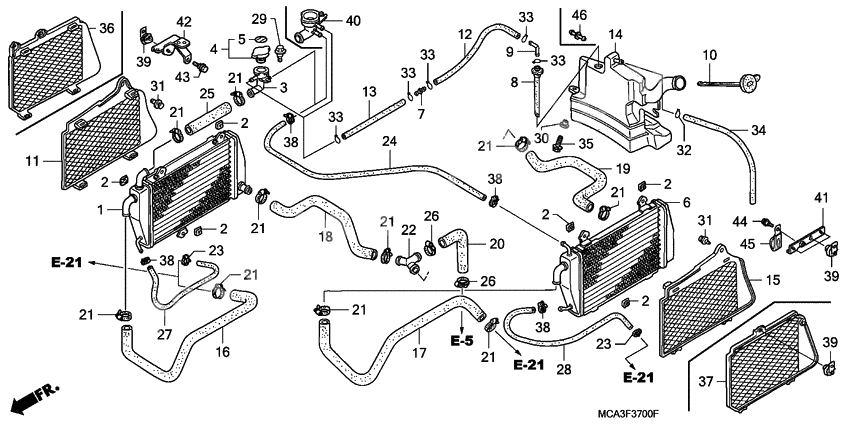

Radiator
Radiator
Радиатор (Ref #1)
1
Part #19010-MCA-A61
Стакан карбюратора (Ref #4)
4
Part #19037-GEE-710
LABEL (Ref #5)
5
Part #19046-PAA-A00
Радиатор (Ref #6)
6
Part #19060-MCA-A61
Joint, tube (Ref #7)
7
Part #19102-KT8-000
Tube, level (Ref #8)
8
Part #19102-ML7-701
Joint, tube (Ref #9)
9
Part #19103-MB9-000
Cap, reserve tank (Ref #10)
10
Part #19104-MCA-000
Tube a, reserve (Ref #12)
12
Part #19106-MCA-000
Tube b, reserve tank (Ref #13)
13
Part #19107-MCA-A60
Tank assy., reserve (Ref #14)
14
Part #19110-MCA-000
Hose, r. fr. (Ref #16)
16
Part #19501-MCA-A60
Hose, l. fr. (Ref #17)
17
Part #19502-MCA-A60
Hose, r. rr. (Ref #18)
18
Part #19503-MCA-A60
Hose, l. rr. (Ref #19)
19
Part #19504-MCA-A60
Hose, rr. radiator (Ref #20)
20
Part #19505-MCA-000
Joint, three-way (Ref #22)
22
Part #19506-MCA-000
Clamp, water hose (Ref #23)
23
Part #19507-MAL-600
Clamp, water hose (Ref #23)
23
Part #19507-MAL-600
Clamp, water hose (Ref #23)
23
Part #19507-MAL-600
Clamp, water hose (Ref #23)
23
Part #19507-MAL-600
Шланг (Ref #24)
24
Part #19508-MCA-A60
Hose, cap joint (Ref #25)
25
Part #19509-MCA-A60
Clamp, radiator hose (Ref #26)
26
Part #19509-MM5-003
Clamp, radiator hose (Ref #26)
26
Part #19509-MM5-003
Clamp, radiator hose (Ref #26)
26
Part #19509-MM5-003
Clamp, radiator hose (Ref #26)
26
Part #19509-MM5-003
Hose, r. drain (Ref #27)
27
Part #19520-MCA-A60
Hose, l. drain (Ref #28)
28
Part #19525-MCA-A60
Болт (Ref #29)
29
Part #90113-MAS-E00
Washer, chain case setting (Ref #30)
30
Part #90522-028-000
CLIP (Ref #32)
32
Part #95002-02100
*95005-55008-10m (Ref #34)
34
Part #95005-553-001-0
BOLT (Ref #35)
35
Part #95701-060-160-0
Grille, r. radiator (Ref #36)
36
Part #19105-MCA-A60
Grille, l. radiator (Ref #37)
37
Part #19205-MCA-A60
Neck, filler (Ref #40)
40
Part #19039-MCA-A61
Stay, connector clip (Ref #41)
41
Part #32175-MCA-A80
Stay, actuator (Ref #42)
42
Part #83155-MCA-A81
Болт (Ref #44)
44
Part #90120-MCA-A80
CLIP (Ref #45)
45
Part #91413-679-000
-
-
